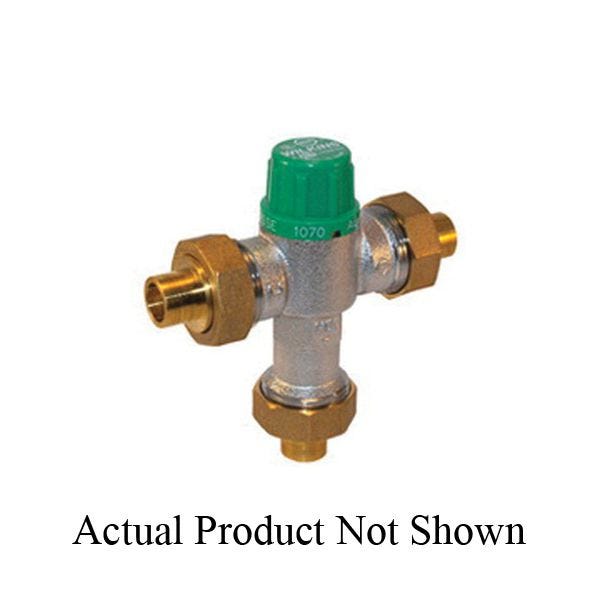

Zurn Wilkins 12-ZW1070XL
ZURN 1/2" AQUA-GARD TMV 1070
SKU
811943
Zurn® Wilkins Aqua-Gard® Thermostatic Mixing Valve, Series: ZW1070XL, 1/2 in Nominal, FNPT, 145 psi, 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply, 10 gpm Flow, Media: Water, 5-1/4 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Cast Bronze Body, 300 Stainless Steel Spring Trim, FKM Seal, Nickel Plated, 5-7/16 in H
- Designed for installation at the point of use
- Suitable for multiple fixtures
- 10 gpm flow rate at 45 psi pressure loss
| Trim Material | 300 Stainless Steel Spring |
|---|---|
| Inlet to Outlet Length | 5-1/4 in |
| Nominal Size | 1/2 in |
| Top to Inlet Center | 2-1/16 in |
| Series | ZW1070XL |
| Body Material | Cast Bronze |
| Softgoods Material | FKM Seal |
| Temperature Rating | 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply |
| Media | Water |
| Flow Capacity | 10 gpm |
| Finish | Nickel Plated |
| Pressure Rating | 145 psi |
| Dimensions | 5-7/16 in H |
| End Style | FNPT |
| Brand | Wilkins |
