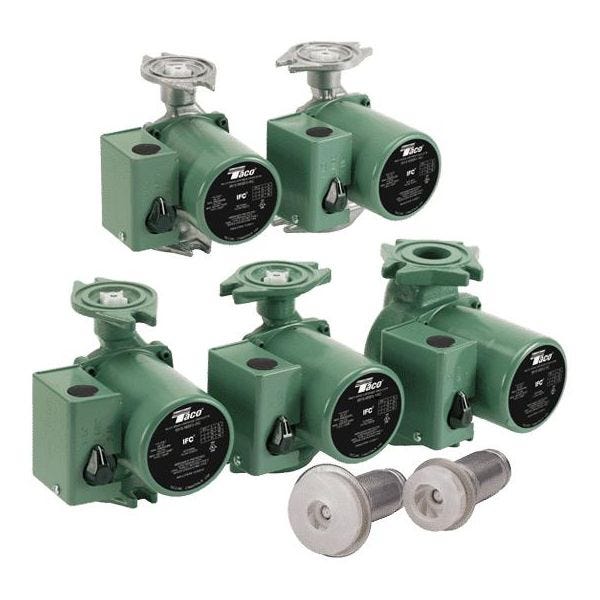

Taco 0010-MSF2-IFC
TACO 3-SPEED C.I PUMP
SKU
855875
Taco®, 0010-MSF2-IFC, Circulator with Integral Flow Check, 3 Speed Cast Iron, Series: 00, 31 gpm Flow Rate, 1-1/2, 1, 3/4, 1-1/4 in Inlet, 1-1/2, 1, 3/4, 1-1/4 in Outlet, 11 ft Maximum Head, 1/20 hp Power, 115 V, 0.57 A at Speed 1, 0.79 A at Speed 2 & 0.91 A at Speed 3, 60 Hz Frequency, 1 ph, 125 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 40 to 230 deg F, Carbon Bearing, 6-3/8 in H x 6-11/16 in W x 6-11/16 in L x 5-3/8 in D Dimensions
- 3-Speed Switch
- 4-bolt universal flange (0010 only)
- Cast Iron or Stainless Steel, flanged construction
- Fine tune to system requirements
- Heavy duty construction for longer life
- Highest performance & starting torque in class
- Quiet, efficient operation
- Removable high-flow Integral Flow Check Prevents gravity flow Reduces installation costs Improves pump performance
- Replaceable cartridge design
- Self lubricating, no mechanical seal
- Wide range of applications
| Voltage Rating | 115 V |
|---|---|
| Power Rating | 1/20 hp |
| Bearing Type | Carbon |
| Maximum Pressure | 125 psi |
| Maximum Head | 11 ft |
| Type | 3 Speed Cast Iron |
| Amperage Rating | 0.57 A at Speed 1, 0.79 A at Speed 2 & 0.91 A at Speed 3 |
| Phase | 1 ph |
| Inlet Size | 1-1/2, 1, 3/4, 1-1/4 in |
| Temperature Rating | 40 to 230 deg F |
| Dimensions | 6-3/8 in H x 6-11/16 in W x 6-11/16 in L x 5-3/8 in D |
| Series | 00 |
| Mounting Type | Flange |
| Impeller Type | Non-Metallic |
| Motor Speed | 3250 rpm |
| Outlet Size | 1-1/2, 1, 3/4, 1-1/4 in |
| Flow Rate | 31 gpm |
| Frequency Rating | 60 Hz |
| Brand | Taco |
