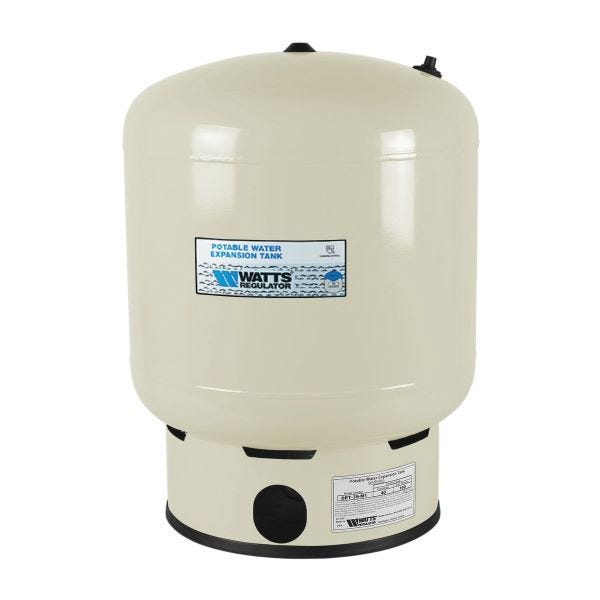

WATTS 0067373
PLT-35 14GAL POTABLE EXP TANK
SKU
282265
WATTS® Water Expansion Tank, Potable, Series: PLT, 14 gal Tan, 10.69 gal Acceptance Volume, 150 psi, ASME Yes/No: No, 16 in Dia, 21.7 in Height, Drawn Steel, 20 psi Pre-Pressure Rating, 200 deg F Maximum Temperature, FNPT, 3/4 in, Domestic
- Air pre-charge at 20 psi
- Prevents over-pressure caused by thermal expansion
- Lead free
- Rugged flexible butyl diaphragm
- Field adjustable pre-charge
- Can be used with most standard hot water heaters and storage tanks
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Series | PLT |
|---|---|
| Pressure Rating | 150 psi |
| Domestic/Import | Domestic |
| Height | 21.7 in |
| Pre-Pressure Rating | 20 psi |
| Maximum Temperature | 200 deg F |
| Material | Drawn Steel |
| Acceptance Volume | 10.69 gal |
| Connection Type | FNPT |
| Tank Volume | 14 gal |
| ASME Yes/No | No |
| Type | Potable |
| Diameter | 16 in |
| Connection Size | 3/4 in |
| Brand | Watts |
