Watts Water Technologies 0121421
40XL-8 3/4MXF LF 150# RLF VLV
SKU
601119

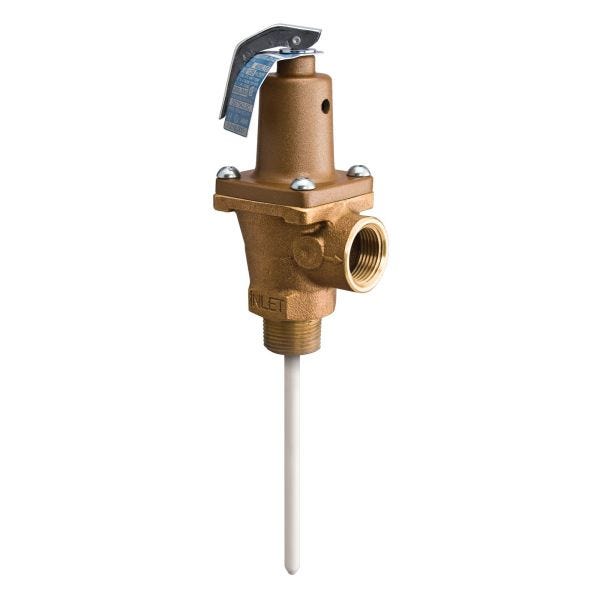

WATTS® Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF40XL-8, 3/4 in Nominal, MNPT x FNPT, 150 psi, 210 deg F, Media: Water, Brass Body, 2-5/8 in W x 5-5/8 in H, Domestic
- Lead free cast brass construction
- Non-mechanical seat-to-disc alignment
- Tamper resistant bonnet screws
- Series 3/4 in LF40, LF140 and 1 in LF40 feature a unique thermostat with a special thermo-bonded coating
- Series 1 in LF140 are furnished with stainless steel thermostat tube
- Series LFN240, LF340 and LF342 are furnished with stainless steel thermostat tube
- 75, 100, 125 and 150 psi standard setting
- Inquire with governing authorities for local installation requirements
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Nominal Size | 3/4 in |
|---|---|
| Series | LF40XL-8 |
| Body Material | Brass |
| Temperature Rating | 210 deg F |
| Media | Water |
| Domestic/Import | Domestic |
| Pressure Rating | 150 psi |
| Dimensions | 2-5/8 in W x 5-5/8 in H |
| Type | Automatic Reseating |
| End Style | MNPT x FNPT |
| Brand | Watts |
