WATTS 0450105
11/4" LFB6080G2 IPS FP BALL V
SKU
646652

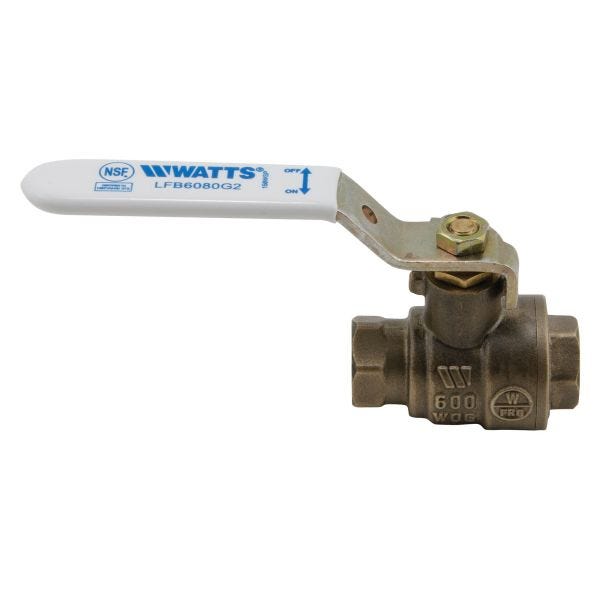

WATTS® Ball Valve, 2-Piece, 1-1/4 in Nominal, NPT End Style, 600 psi Pressure, 0 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 3-3/8 in Inlet to Outlet Length, 2-13/16 in Top to Inlet Center, Forged Bronze Body, Brass Stem Trim, Virgin PTFE/Fluorocarbon Elastomer Softgoods, Domestic
- Full port design
- 600 psi WOG rating
- NPT threaded end connection
- Lead free forged bronze body and adapter
- Stainless steel ball and stem
- Minimal pressure drop due to large ports
- Blow-out proof, pressure retaining stem
- White handle for easy Lead free identification
- Reversible handle that provides flexibility when installing multiple ball valves in a series, where space is tight
- Metal-to-metal adapter seal with high temperature thread sealant
- Excessive heat can harm the seats
- After soldering, the packing nut may have to be tightened
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Virgin PTFE stem packing seal and fluorocarbon elastomer O-ring
| Softgoods Material | Virgin PTFE/Fluorocarbon Elastomer |
|---|---|
| Port Type | Full |
| End Style | NPT |
| Media | Gas/Liquids |
| Ball Material | Chrome Plated Brass |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 3-3/8 in |
| Top to Inlet Center | 2-13/16 in |
| Type | 2-Piece |
| Pressure Rating | 600 psi |
| Body Material | Forged Bronze |
| Nominal Size | 1-1/4 in |
| Temperature Rating | 0 to 400 deg F |
| Series | LFB6080G2 |
| Trim Material | Brass Stem |
| Brand | Watts |
| Use | Threaded |
| Type | Ball Valve |
| Size | 1 1/4" |
