WATTS 0450120
LF B6080G2 SS 11/4" IPS BV
SKU
642303

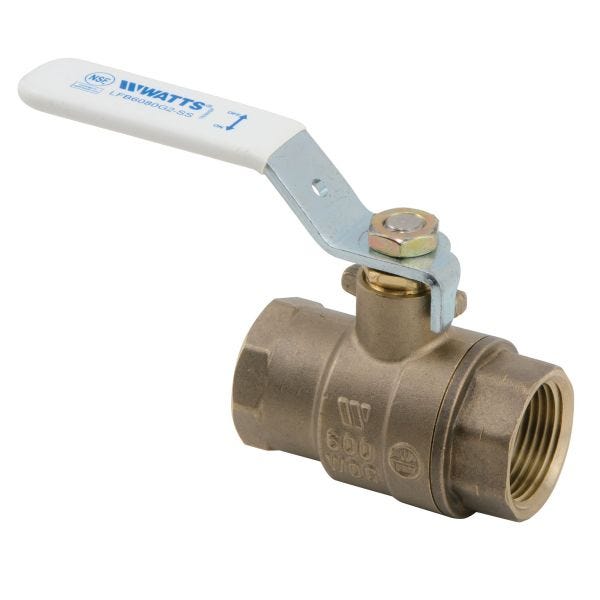

WATTS® Ball Valve, 2-Piece, Series: LFB6080G2, 1-1/4 in Nominal, FNPT, 600 psi WOG/150 psi WSP, 0 to 400 deg F, Full Port, Media: Liquid/Gas/Water, 1-1/4 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 3-3/8 in Inlet to Outlet Length, 2-13/16 in Top to Inlet Center, Forged Bronze Body, 316 Stainless Steel/Virgin® PTFE Trim, Virgin® PTFE/FKM, Domestic
- Full port design
- White handles for easy lead free identification
- Minimal pressure drop due to large ports
- Blowout proof, pressure retaining stem
- Virgin PTFE adjustable stem packing gland/thrust washer/FKM O-Ring
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Softgoods Material | Virgin® PTFE/FKM |
|---|---|
| Port Type | Full |
| End Style | FNPT |
| Media | Liquid/Gas/Water |
| Ball Material | 316 Stainless Steel |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 3-3/8 in |
| Top to Inlet Center | 2-13/16 in |
| Type | 2-Piece |
| Pressure Rating | 600 psi WOG/150 psi WSP |
| Orifice Size | 1-1/4 in |
| Body Material | Forged Bronze |
| Nominal Size | 1-1/4 in |
| Temperature Rating | 0 to 400 deg F |
| Series | LFB6080G2 |
| Actuator Type | Lever Handle |
| Trim Material | 316 Stainless Steel/Virgin® PTFE |
| Brand | Watts |
| Use | Threaded |
| Type | Ball Valve |
| Size | 1 1/4" |
