WATTS 0547106
11/2 FBV-3C IPS F/P BALL VALV
SKU
121759

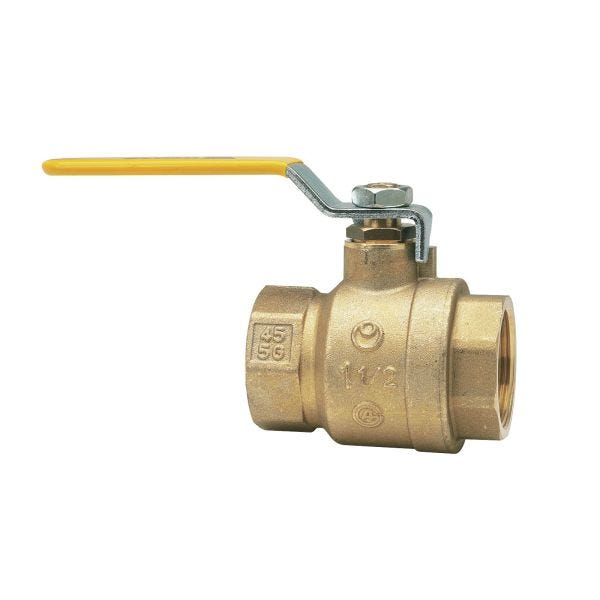

WATTS® Ball Valve, 2-Piece, Series: FBV-3C, 1-1/2 in Nominal, Thread End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 3-1/2 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, Forged Brass Body, Brass Stem and PTFE Seat Trim, Fluorocarbon/Virgin PTFE Softgoods, Import
- Full port
- Made of durable brass
- Adjustable stem packing gland nut
- Bottom loaded, blow-out proof stem
- Machined chrome plated brass ball
- Recommended for open/close applications
- 150 psi steam working pressure
- Fluorocarbon elastomer O-ring and virgin PTFE stem packing seal/thrust washer
| Softgoods Material | Fluorocarbon/Virgin PTFE |
|---|---|
| Port Type | Full |
| End Style | Thread |
| Media | Gas/Liquids |
| Ball Material | Chrome Plated Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3-1/2 in |
| Top to Inlet Center | 3-3/16 in |
| Type | 2-Piece |
| Pressure Rating | 600 psi |
| Body Material | Forged Brass |
| Nominal Size | 1-1/2 in |
| Temperature Rating | -40 to 400 deg F |
| Series | FBV-3C |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | Watts |
| Use | Threaded |
| Type | Ball Valve |
| Size | 1 1/2" |
