WATTS 0559105
LF 1170-US M2 1 THERM MIX VAL
SKU
572215

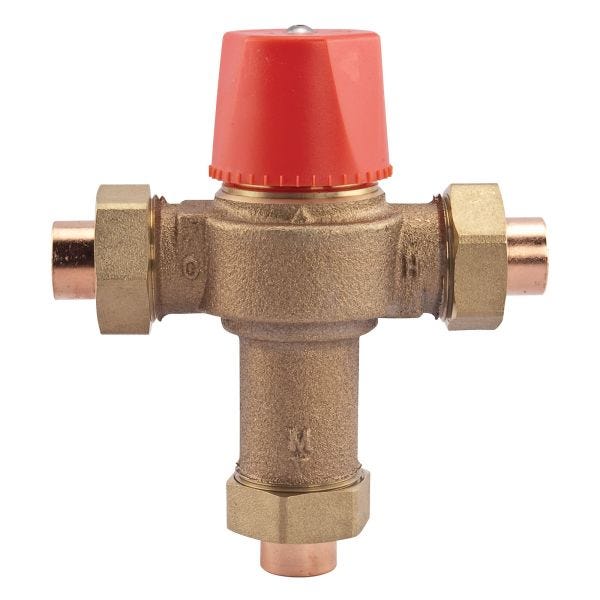

WATTS®, 0559105, Temperature Control Valve, Series: LF1170, 1 in Nominal, Solder Union End Style, 150 psi Pressure, 200 deg F, 0.5 gpm Flow Rate, Media: Water, Copper Silicon Alloy Body, EPDM/Stainless Steel Softgoods, 5-13/16 in W x 5-7/8 in H Dimensions, Domestic
- Thermal actuation technology for precise temperature control
- Lead free cast copper silicon alloy body construction
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
- Thermostat controls both hot and cold water
- Integral filter washers and check valves
- Adjustment cap with locking feature
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 30 psi static minimum supply pressure
- 120 to 200 deg F hot inlet and 40 to 85 deg F cold inlet temperature
- 5 deg F above set point hot water inlet to outlet differential temperature
- 90 to 160 deg F temperature out
- Accurate within +/- 3 deg F temperature out
- EPDM O-ring/Stainless steel spring
| Nominal Size | 1 in |
|---|---|
| Series | LF1170 |
| Body Material | Copper Silicon Alloy |
| Softgoods Material | EPDM/Stainless Steel |
| Temperature Rating | 200 deg F |
| Media | Water |
| Flow Rate | 0.5 gpm |
| Domestic/Import | Domestic |
| Pressure Rating | 150 psi |
| Dimensions | 5-13/16 in W x 5-7/8 in H |
| End Style | Solder Union |
| Brand | Watts |
