LEGEND 101-234
3/4" S901 BRONZE FULL PORT
SKU
898603

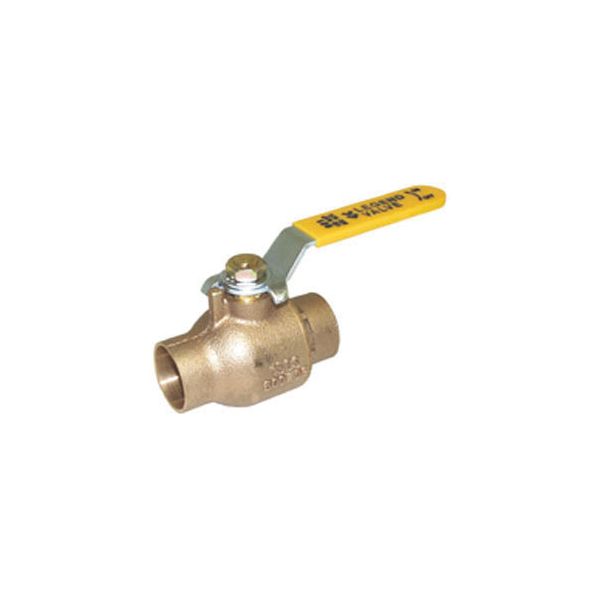

LEGEND Ball Valve, Series: S-901, 3/4 in Nominal, C, 600 psi CWP, Full Port, Polished Chrome Forged Brass Ball, 2.76 in Inlet to Outlet Length, 1.97 in Top to Inlet Center, Bronze Body, Forged Brass Stem and PTFE Seat Trim, PTFE, Import
- Oversized, dezincification-resistant cast bronze body is ideal for underground water supply installations
- Bottom loaded Blow-out proof stem
- Gland follower stem design
- PTFE is a registered trademark of DuPont
- 150 psi saturated steam
- PTFE stem packing
| Softgoods Material | PTFE |
|---|---|
| Port Type | Full |
| End Style | C |
| Ball Material | Polished Chrome Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.76 in |
| Top to Inlet Center | 1.97 in |
| Pressure Rating | 600 psi CWP |
| Body Material | Bronze |
| Nominal Size | 3/4 in |
| Series | S-901 |
| Trim Material | Forged Brass Stem and PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 3/4" |
