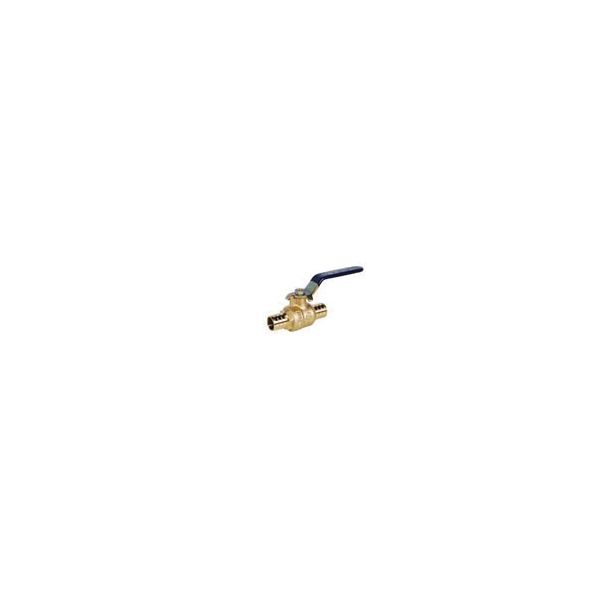

LEGEND 101-595NL
1" PEX X PEX BALL VALVE NL
SKU
586313
LEGEND Ball Valve, Lead Free, Series: T-2006NL, 1 in Nominal, PEX, 400 psi CWP, Full Port, Lever Operated Actuator, Polished Chrome Forged Brass Ball, 3.21 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, Import
- Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
- Durable, forged brass construction is smaller, yet stronger than cast versions making them ideal for confined tubing installations
- Maintenance-free dual O-Ring, Blow-out proof stem design eliminates the stem packing nut, thereby eliminating the need for periodic nut tightening
- PTFE seats assure a positive shutoff and a longer in-service life over ball valves with other seat types
- Self-cleaning chrome plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions
- Not suitable for steam service
- 400 psi cold working pressure
- Third-party tested and certified in compliance with all Lead free plumbing laws, including US Federal Public Law 111-380
- PTFE is a registered trademark of the DuPont company
| Port Type | Full |
|---|---|
| End Style | PEX |
| Ball Material | Polished Chrome Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3.21 in |
| Top to Inlet Center | 1.91 in |
| Pressure Rating | 400 psi CWP |
| Body Material | Forged Brass |
| Nominal Size | 1 in |
| Series | T-2006NL |
| Actuator Type | Lever Operated |
| Trim Material | Forged Brass Stem and PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 1" |
