LEGEND 101-598NL
1"T2007 PEX BV W/ DRAIN
SKU
632378

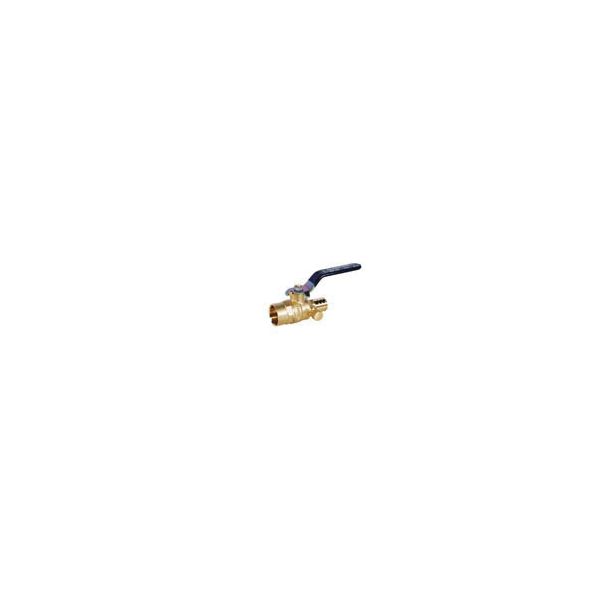

LEGEND Ball Valve, Lead Free, Series: T-2007NL, 1 in Nominal, PEX, 400 psi CWP, Full Port, T-Handle Actuator, DZR Forged Brass Ball, 3.23 in Inlet to Outlet Length, 1.97 in Top to Inlet Center, DZR Forged Brass Body, DZR Forged Brass Stem and PTFE Seat Trim, Import
- Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
- Durable, compact, forged brass body is ideal for confined installations
- Maintenance-free dual O-Ring, Blow-out proof stem design
- Self-cleaning chrome plated ball resists mineral build-up
- The capped waste port permits component Isolation and drain-down, for servicing or replacement operations
- Not suitable for steam service
| Port Type | Full |
|---|---|
| End Style | PEX |
| Ball Material | DZR Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3.23 in |
| Top to Inlet Center | 1.97 in |
| Pressure Rating | 400 psi CWP |
| Body Material | DZR Forged Brass |
| Nominal Size | 1 in |
| Series | T-2007NL |
| Actuator Type | T-Handle |
| Trim Material | DZR Forged Brass Stem and PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 1" |
