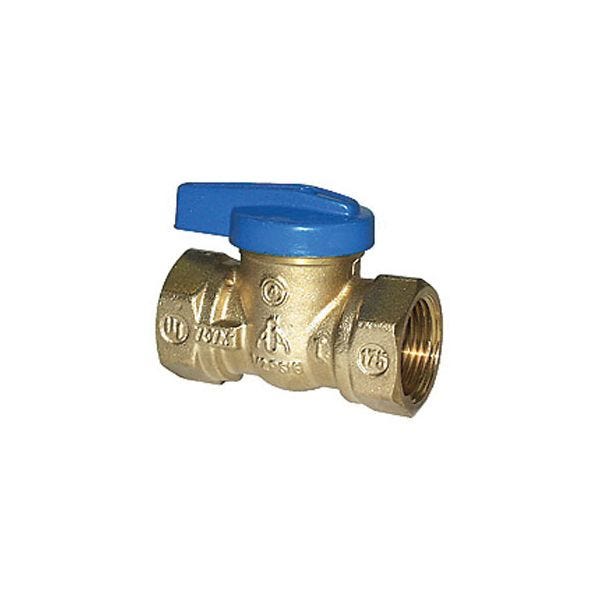

LEGEND 102-102
3/8" 600WOG UL LISTED LPGAS FULL PORT BALL VALVE
SKU
462282
LEGEND Ball Valve, 1-Piece, Series: T-3000, 3/8 in Nominal, FNPT x IPS, 175 psi, Media: Gas, Quarter Turn Handle Actuator, Forged Brass Ball, 2.02 in Inlet to Outlet Length, Brass Body, Brass Stem Trim, Synthetic Fiber/NBR, 1-3/4 in H, Import
- Forged brass stem retainer bushing, nitrile (NBR) rubber seats/stem O-Ring, commercial grade synthetic fiber thrust washer, ASTM B159 phosphor bronze wire stem retainer clip, commercial grade, die-cast coated aluminum handle zinc plated steel handle screw
- Chrome plated ball and soft seats resist contamination build-up and offer a positive seal in low or moderate pressure gas applications
- Patented 1-Piece forged brass body eliminates the possibility of seam leaks common to 2-piece body designs
- Without the grease-seal Blow-out common to plug-type gas cocks
- Quarter-turn, ball-type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
- Synthetic fiber thrust washer and NBR stem O-ring
| Softgoods Material | Synthetic Fiber/NBR |
|---|---|
| Dimensions | 1-3/4 in H |
| End Style | FNPT x IPS |
| Media | Gas |
| Ball Material | Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.02 in |
| Type | 1-Piece |
| Pressure Rating | 175 psi |
| Body Material | Brass |
| Nominal Size | 3/8 in |
| Series | T-3000 |
| Actuator Type | Quarter Turn Handle |
| Trim Material | Brass Stem |
| Brand | Legend |
| Type | Ball Valve |
| Size | 3/8" |
