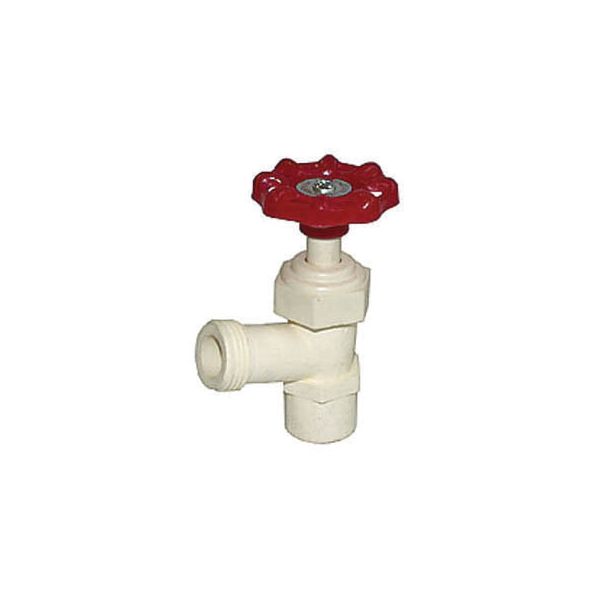

LEGEND 202-523
1/2" LEGEND CPVC BOILER DRAIN
SKU
532931
LEGEND Boiler Drain Valve, Series: S-619, 1/2 in Nominal, Solvent End Style, 150 psi Pressure, 180 deg F, Media: Gas/Oil/Water, Handwheel Actuator, 2.13 in Inlet to Outlet Length, CPVC Body, CPVC Trim, Polyamide Nylon 12 Seat Seal/EPDM O-Ring/EPDM Washer Softgoods, 4.2 in L Dimensions, Import
- Naturally lead free
- Zinc plated steel screw, polypropylene handwheel , CPVC stem, bonnet body, EPDM o-ring, washer, CELCON hard washer, polyamide nylon 12 seat seal
- Not recommended for steam service
| Softgoods Material | Polyamide Nylon 12 Seat Seal/EPDM O-Ring/EPDM Washer |
|---|---|
| Dimensions | 4.2 in L |
| End Style | Solvent |
| Media | Gas/Oil/Water |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.13 in |
| Pressure Rating | 150 psi |
| Body Material | CPVC |
| Nominal Size | 1/2 in |
| Temperature Rating | 180 deg F |
| Series | S-619 |
| Actuator Type | Handwheel |
| Trim Material | CPVC |
| Brand | Legend |
| Type | Boiler Drains |
| Size | 1/2" |
