LEGEND 101-543NL
1/2" F1960 (UPONOR) PEX BV
SKU
635878

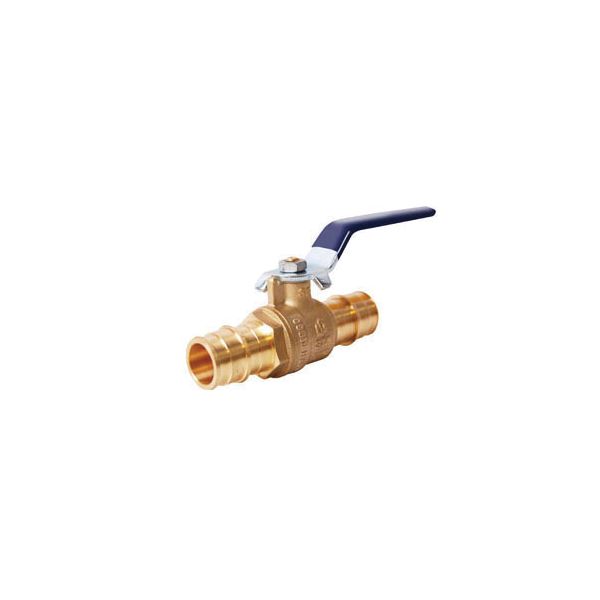

LEGEND Ball Valve, Lead Free, Series: T-1960NL, 1/2 in Nominal, PEX, 400 psi, Full Port, Media: Water, Lever Operated Actuator, Brass Ball, 2.72 in Inlet to Outlet Length, 1-1/2 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, EPDM/NBR Rubber, Polished Chrome, Import
- Self-cleaning chrome plated ball resists mineral build-up and scaling
- Dezincification resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
- Drop-ear-drainable configuration, when properly fastened to supports, drastically reduces tubing stress by dispersing the operational twisting force through the valve's body, verses the tubing connections
- Bottom loaded, maintenance-free Blow-out proof stem features a dual-O-Ring design, assuring positive sealing under low and high temperature and pressures
- PEX end connections are ASTM F1960 compliant and specifically designed for the cold expansion connection method, using a PEX reinforcing ring
- Lead free design is suitable for all no lead potable water installations in full compliance of all Lead free plumbing laws
- Maintenance-free design
- EPDM rubber stem O-ring/anti-friction washer and NBR rubber waste cap gasket
| Softgoods Material | EPDM/NBR Rubber |
|---|---|
| Port Type | Full |
| End Style | PEX |
| Media | Water |
| Ball Material | Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.72 in |
| Top to Inlet Center | 1-1/2 in |
| Pressure Rating | 400 psi |
| Body Material | Brass |
| Nominal Size | 1/2 in |
| Series | T-1960NL |
| Actuator Type | Lever Operated |
| Trim Material | Brass Stem and PTFE Seat |
| Finish | Polished Chrome |
| Brand | Legend |
| Type | Ball Valve |
| Size | 1/2" |
