LEGEND 104-615
1"IPS BRZ GATE VLV RS 300#CWP
SKU
752416

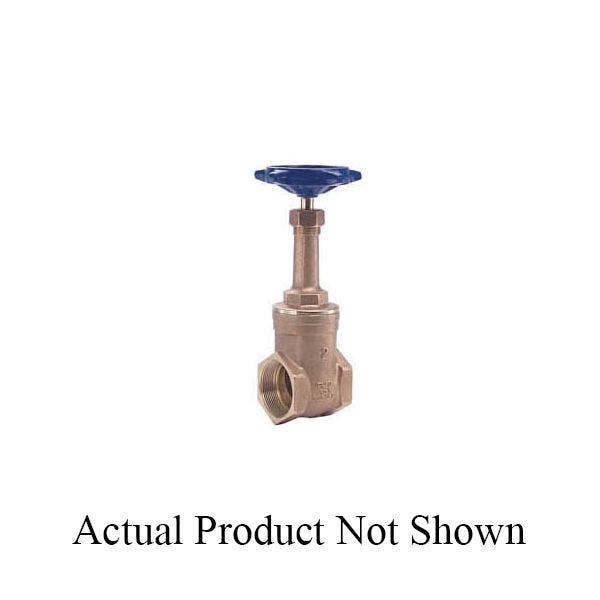

LEGEND Gate Valve, Rising Stem, Series: T-416, 1 in Nominal, FNPT End Style, 300 psi CWP Pressure, 0 to 450 deg F, Handwheel Actuator, 2.32 in Inlet to Outlet Length, 6.58 in Top to Inlet Center, Cast Bronze Body, Brass Trim, PTFE Stem Packing Softgoods, 3.27 in Diameter Hand Wheel, Import
- Durable, all-bronze body construction resists pipeline stresses and distortion
- A full-flow waterway reduces pressure drop
- Rising stem design provides a quick, external visual reference to the internal disc-wedge position
- Heavy-duty inserted and extended bonnet is ideal for insulated or remote piping installations, placing the handwheel closer to the operator
- Solid, fully-guided disc-wedge rises completely out of the flow path and has a broad sealing area that resists mineral build-up
- Integral seats are precision-ground to match each disc-wedge, enhancing the drip-tight seal
- The gland follower stem seal design lasts longer than traditional packing-nut designs, by isolating the packing nut's rotational movement from the packing's compression seal
- 300 psi CWP non-shock
- 150 psi saturated steam
- 450 psi shell (water)
- 80 psi seat (air)
- DZR machining brass
- Cast bronze disc wedge
| Softgoods Material | PTFE Stem Packing |
|---|---|
| End Style | FNPT |
| Hand Wheel Diameter | 3.27 in |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.32 in |
| Top to Inlet Center | 6.58 in |
| Type | Rising Stem |
| Pressure Rating | 300 psi CWP |
| Body Material | Cast Bronze |
| Nominal Size | 1 in |
| Temperature Rating | 0 to 450 deg F |
| Series | T-416 |
| Actuator Type | Handwheel |
| Trim Material | Brass |
| Brand | Legend |
