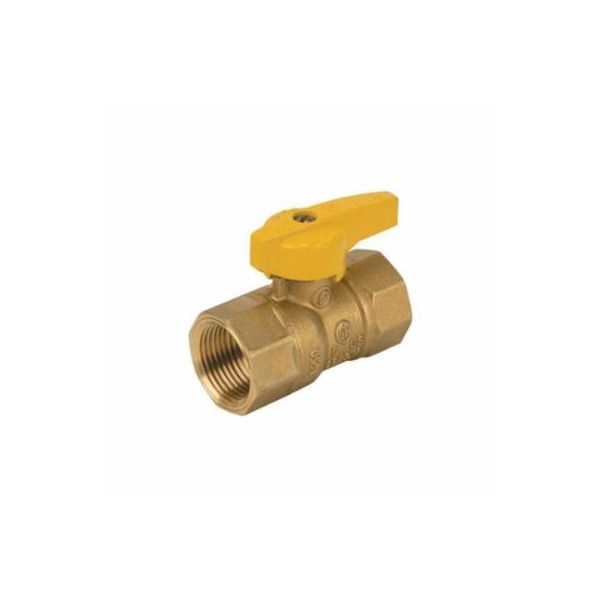

Jomar Valve 102-514
3/4" GAS BALL VALVE TAPPED
SKU
638602
Jomar Valve® Gas Ball Valve, 2-Piece, 3/4 in Nominal, FNPT, 400 psi WOG, Teardrop Handle Actuator, Chrome Plated Brass Ball, 2.46 in Inlet to Outlet Length, 1.54 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, PTFE/FKM, Import
- Valve can be locked in the closed position by reversing the handle
- Triple sealing stem with (2) FKM O-Rings and PTFE seal
- 100% leak tested
- Leak-proof stem lifetime warranty
- PTFE packing and FKM stem O-ring
| Softgoods Material | PTFE/FKM |
|---|---|
| End Style | FNPT |
| Ball Material | Chrome Plated Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.46 in |
| Top to Inlet Center | 1.54 in |
| Type | 2-Piece |
| Pressure Rating | 400 psi WOG |
| Body Material | Brass |
| Nominal Size | 3/4 in |
| Actuator Type | Teardrop Handle |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 3/4" |
