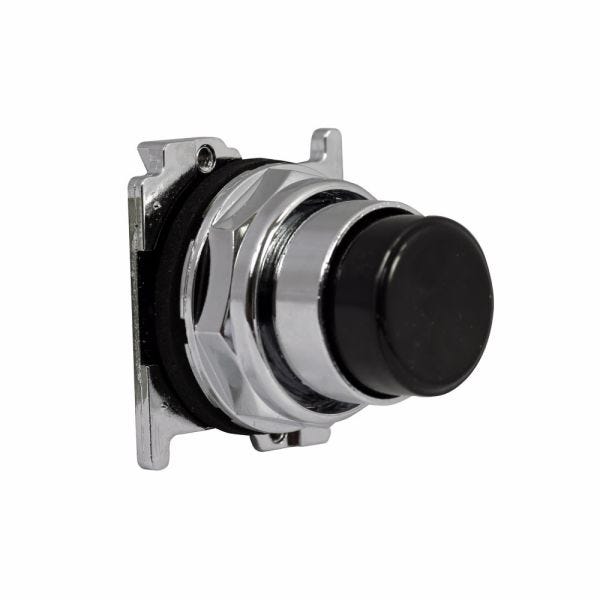

EATON Non-illuminated Pushbutton Operator, Heavy Duty Oil/Watertight, Series: 10250T, 30.5 mm Size, Momentary Contact Mode, 10 A at 600 VAC/VDC Contact, Extended Button Operator, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Bezel/Housing: Polished Chrome Bezel, 1 to 150 deg F, Die-Cast Zinc, Black
- Heavy duty die-cast zinc construction
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bite through paint and other coatings to provide secure ground
| Bezel/Housing | Polished Chrome Bezel |
|---|---|
| Contact Mode | Momentary |
| Series | 10250T |
| Temperature Rating | 1 to 150 deg F |
| Size | 30.5 mm |
| Operator Type | Extended Button |
| Contact Rating | 10 A at 600 VAC/VDC |
| Enclosure Type | NEMA 3/3R/4/4X/12/13/IP65 |
| Color | Black |
| Type | Heavy Duty Oil/Watertight |
| Material | Die-Cast Zinc |
| Brand | Eaton |
| Type | Push Buttons |
| Color | Black |
