LEGEND 105-207NL
1-1/2"LF CXC CHECK VALVE 200WO
SKU
595950

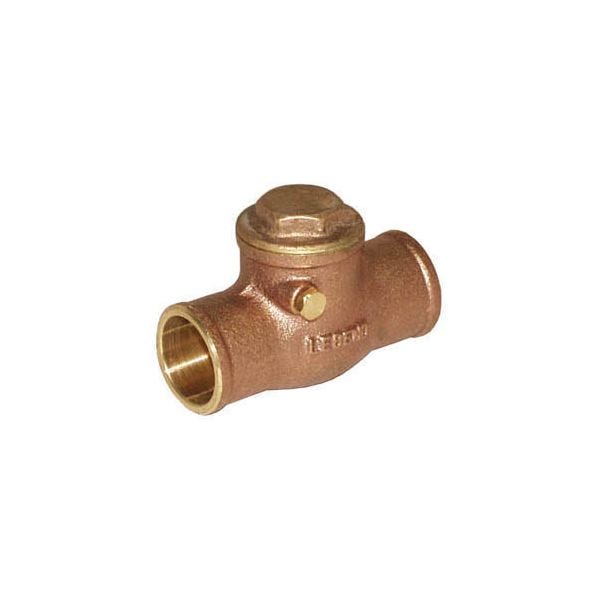

LEGEND LEGEND GREEN™ Swing Check Valve, Lead Free, Series: S-451NL, 1-1/2 in Nominal, C, 200 psi CWP, Low Lead Compliance: Yes, Full Port, 4.49 in Inlet to Outlet Length, 2.17 in Top to Inlet Center, Cast Brass Body, Forged Brass Trim, Import
- Durable, full-pattern cast brass body
- Large, integral seat and disc sealing surfaces
- Forged brass hinge pin assures smooth, non-binding disc operation
- T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
- Forged brass disc
| End Style | C |
|---|---|
| Top to Inlet Center | 2.17 in |
| Inlet to Outlet Length | 4.49 in |
| Domestic/Import | Import |
| Trim Material | Forged Brass |
| Low Lead Compliance | Yes |
| Port Type | Full |
| Pressure Rating | 200 psi CWP |
| Nominal Size | 1-1/2 in |
| Series | S-451NL |
| Body Material | Cast Brass |
| Brand | Legend |
| Type | Swing Check Valve |
