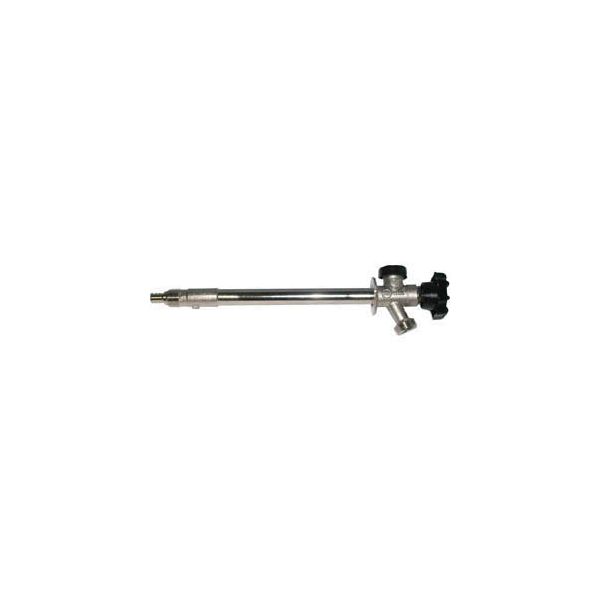

LEGEND 108-143NL
8" SILLCOCK LF CRIMP PEX W/VAC
SKU
663225
LEGEND Frost Free Sillcock, Multi-Turn Anti-Siphon, Series: T-552PNL, 1/2 x 8 in Nominal, PEX End Style, 125 psi CWP Pressure, Media: Liquid, Brass Body, Brass Trim, Handwheel Actuator, Polished Chrome, 13.35 in L x 3.2 in W Dimensions, Import
- Lead-free design is suitable for all no lead potable water installations, in full compliance of federal public law 111-380
- Durable chrome plated body offers superior corrosion resistance over unplated versions
- Extended-hub hand wheel moves the operator's hands away from the sharp hose bibb threads
- A tapered sill wedge, included with each valve, eases installation onto a variety of sill types by pitching the outlet downward, to the proper 5 deg angle
- Equipped with an anti-siphon vacuum breaker and internal check valve, to prevent backflow into the potable water system
- The outlet orientation tab at the inlet connection, clearly shows the hose bibb outlet's position and is easier to see than a simple mark, in low-light installations
- Softouch™ handle
| Pressure Rating | 125 psi CWP |
|---|---|
| Body Material | Brass |
| Type | Multi-Turn Anti-Siphon |
| Domestic/Import | Import |
| Finish | Polished Chrome |
| Trim Material | Brass |
| End Style | PEX |
| Media | Liquid |
| Series | T-552PNL |
| Dimensions | 13.35 in L x 3.2 in W |
| Actuator Type | Handwheel |
| Nominal Size | 1/2 x 8 in |
| Brand | Legend |
