LEGEND 114-605NL
LF 1/2"PEX F1960x1/4"OD ANGLE
SKU
871494

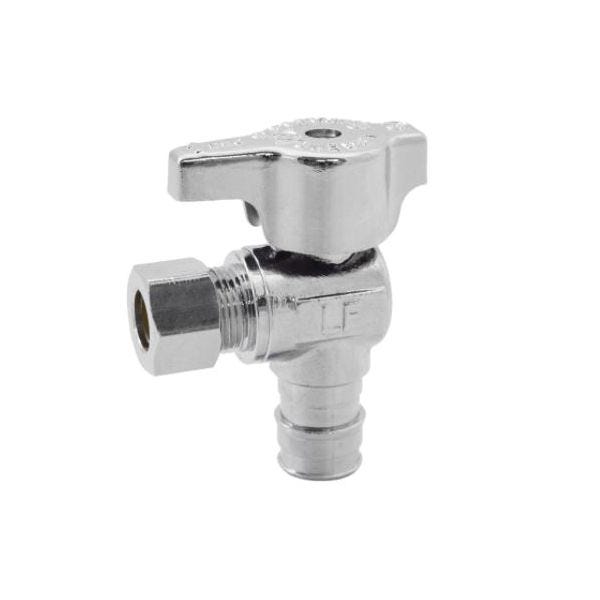

LEGEND Angle Supply Stop Valve, Lead Free 1/4 Turn, Series: T-595NL, 1/2 x 1/4 in Nominal, F1960 PEX x Compression, 125 psi, Brass Body, Brass/EPDM Trim, 120 deg F, 1.02 in H, Polished Chrome, Import
- Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
- Proprietary cold-expansion PEX inlet connection utilizes an exaggerated center barb and PEX reinforcing ring (not included) for a permanent, leak-free connection
- Self-cleaning ball valve design resists mineral and scale build-up, assuring positive shutoff and re-opening
- The ball-seat operation and dual O-ring stem seal features, out-perform traditional multi-turn stop designs
- Compact lead free forged brass polished chrome bodies are both durable and decorative
- An ideal upgrade replacement for worn, leaking stops that won't close completely
- EPDM rubber seat
| Series | T-595NL |
|---|---|
| Type | 1/4 Turn |
| Temperature Rating | 120 deg F |
| Domestic/Import | Import |
| Pressure Rating | 125 psi |
| Dimensions | 1.02 in H |
| Body Material | Brass |
| End Style | F1960 PEX x Compression |
| Trim Material | Brass/EPDM |
| Finish | Polished Chrome |
| Nominal Size | 1/2 x 1/4 in |
| Brand | Legend |
| Type | Angle stops |
