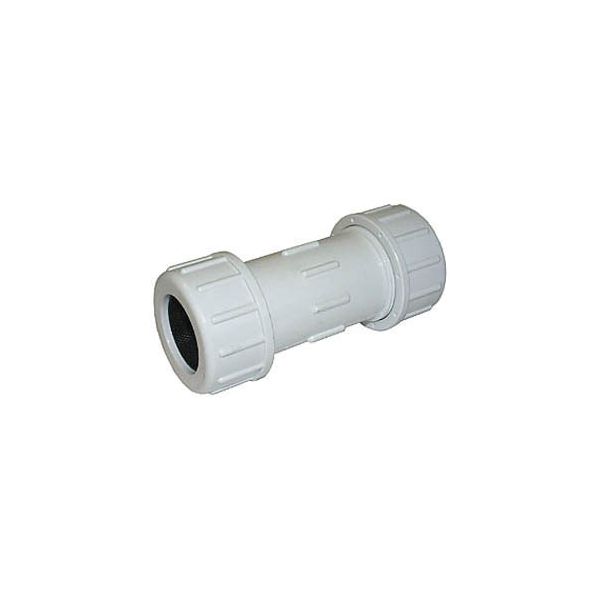

LEGEND 204-110
3"PVC COMPRESSION COUPLING
SKU
608452
LEGEND 204-110, Long, Coupling Fitting/Connector, 3 in Nominal, Compression End Style, 10.87 in Length, SCH 40/STD and SCH 80/XH Schedule, 150 psi Pressure, PVC, NBR Buna-N Rubber Gasket Seal, 73 deg F, 5.28 in W Dimensions, Domestic/Import: Import
- Long-pattern bodies and large compression nuts add rigidity and minimize pipe deflection
- Constructed of corrosion proof, virgin PVC resin
- Compression-type end connections are designed to fit onto SCH 40/STD or SCH 80/XH pipe of various material types PVC, steel or red brass
- Open-center design without internal pipe end stops, permits easier slip-on repairs
- High performance commercial-grade NBR rubber gaskets feature textured inside diameters, enhancing the pressure seal while increasing grip
| Pressure Rating | 150 psi |
|---|---|
| Length | 10.87 in |
| Domestic/Import | Import |
| Nominal Size | 3 in |
| End Style | Compression |
| Material | PVC |
| Temperature Rating | 73 deg F |
| Fitting/Connector Type | Coupling |
| Seal Material | NBR Buna-N Rubber Gasket |
| Dimensions | 5.28 in W |
| Schedule Rating | SCH 40/STD and SCH 80/XH |
| Type | Long |
| Brand | Legend |
