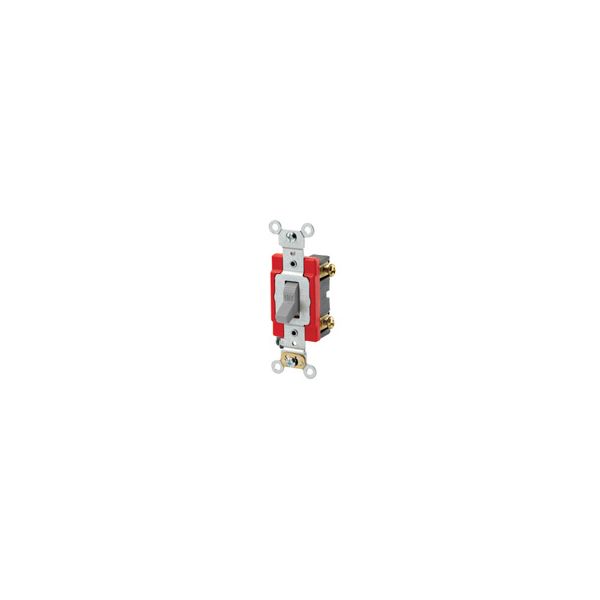

Leviton 1221-2GY
GY SW TGL SP20A120/277VAC
SKU
890496
Leviton®, 1221-2GY, AC Quiet Toggle Switch, Self-Grounding, 120/277 VAC, 20 A, 800 W, 1000 VA Power, SP Contact Configuration, 1 hp at 120 VAC, 2 hp at 240 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Gray, Environmental Conditions: -40 to 60 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 1 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
| Dimensions | 46 in H x 1.31 in W x 13 in D |
|---|---|
| Power Rating | 800 W, 1000 VA |
| Voltage Rating | 120/277 VAC |
| Operating Cycles | 50000 Cycles |
| Mounting | Surface |
| Environmental Conditions | -40 to 60 deg C Operating Temperature |
| Contact Configuration | SP |
| Contact Rating | 1 hp at 120 VAC, 2 hp at 240 VAC |
| Color | Gray |
| Type | Self-Grounding |
| Number of Poles | 1 |
| Material | Thermoplastic |
| Terminal Type | Back/Side Wire |
| Amperage Rating | 20 A |
| Actuator | Toggle |
| Enclosure | NEMA WD-1/WD-6 |
| Brand | Leviton Mfg |
| Amperage | 20 Amp |
| Type | Toggle |
| Voltage | 120/277V |
| Color | Grey |
