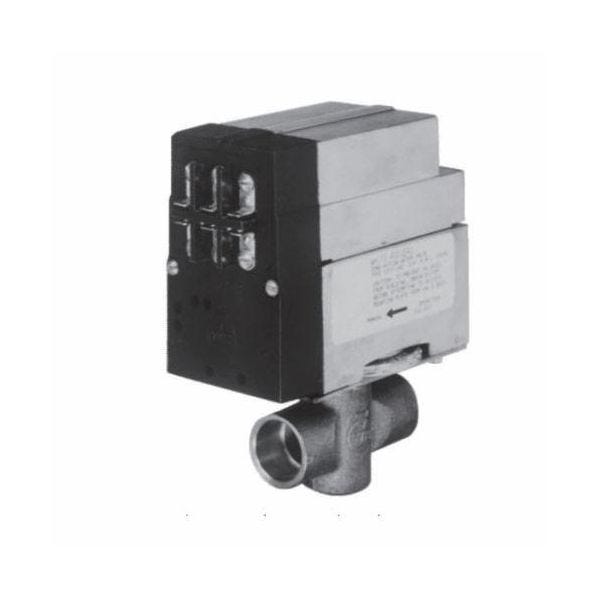

White-Rodgers 1361-102
W/R 3/4" 2-WIRE ZONE VALVE
SKU
4465
White-Rodgers™ Zone Valve, Series: 1300, 3/4 in Nominal, C, 50 psi, 23.5 Cv, 24 VAC, 0.2 A, 240 deg F Water Temperature, 15 psi Differential, Time Cycle: 45 sec Open, 60 sec Close, 2-Wire, Stainless Steel, Import
- Quiet operation
- Automatic recycling manual operator shows valve position at all times
- Built-in auxiliary contacts to control burner or circulator relay
- Motor can be removed from valve assembly without draining system
- Self-aligning barrel-type valve stem design
- Made of a corrosion-resistant stainless steel
- Uses line pressure to seal off without binding on opening and closing
- Four zone valves operate with one 40 VA transformer
- 23.5 Cv at 1 psi drop
- 2-1/2 ft friction loss copper tubing
- 60 Hz frequency
| Pressure Rating | 50 psi |
|---|---|
| Series | 1300 |
| End Style | C |
| Material | Stainless Steel |
| Material | Stainless Steel |
| Water Temperature | 240 deg F |
| Differential | 15 psi |
| Electrical Connections | 2-Wire |
| Coefficient of Volume | 23.5 Cv |
| Amperage Rating | 0.2 A |
| Time Cycle | 45 sec Open, 60 sec Close |
| Time Cycle | 45 sec Open, 60 sec Close |
| Nominal Size | 3/4 in |
| Domestic/Import | Import |
| Voltage Rating | 24 VAC |
| Brand | White-Rodgers |
