Zoeller Company 151-0002
ZOELLER NON AUTO 1/2HP PUMP
SKU
419088

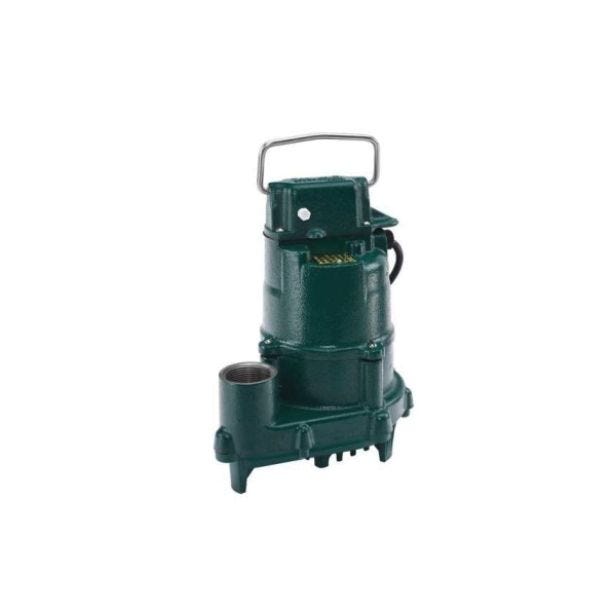

Zoeller® Effluent Pump, Series: 150, 77 gpm Maximum, Automatic/Non Automatic: Non-Automatic, 1/2 in NPT Outlet, 44 ft Maximum Head, 1/3 hp, 115/230 VAC, 3.2 to 10.5 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Upper Sleeve/Lower Ball Bearing, Cast Iron, 11-11/16 in H, Domestic
- Durable cast iron construction
- Model 151 (60 Hz) comes standard with a glass-filled polypropylene base
- Corrosion resistant powder coated epoxy
- Stainless steel lifting handle
- Assembled with stainless steel bolts
- Model 151 (60 Hz) 1/3 hp passes 1/2 in spherical solids
- 3450 rpm oil filled motor, hermetically-sealed, automatic reset thermal overload protected
- Carbon/ceramic seals
- Upper sleeve bearing and lower ball bearing running in bath of oil
- 20 ft L UL listed power cord with molded 3-wire plug
| Motor Speed | 3450 rpm |
|---|---|
| Frequency Rating | 60 Hz |
| Automatic/Non Automatic | Non-Automatic |
| Maximum Flow Rate | 77 gpm |
| Temperature Rating | 130 deg F |
| Domestic/Import | Domestic |
| Amperage Rating | 3.2 to 10.5 A |
| Outlet Size | 1/2 in NPT |
| Phase | 1 ph |
| Bearing Type | Upper Sleeve/Lower Ball |
| Maximum Head | 44 ft |
| Dimensions | 11-11/16 in H |
| Impeller Type | Non-Clogging Vortex |
| Series | 150 |
| Material | Cast Iron |
| Horsepower | 1/3 hp |
| Brand | Zoeller |
