LEGEND 201-208
BALL VALVE UNION PVC 2"
SKU
660246

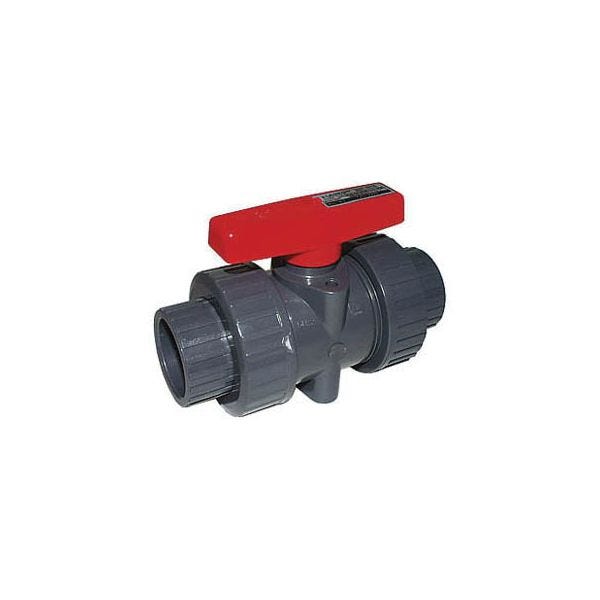

LEGEND True Union Ball Valve, Series: T/S-603, 2 in Nominal, FNPT, 150 psi, 140 deg F, Full Port, T-Handle Actuator, UPVC Ball, 8.13 in Inlet to Outlet Length, UPVC Body, UPVC Stem and PTFE Seat Trim, EPDM, 6.63 in H, Import
- ABS handle UPVC end adapters/union nuts/seat carrier, EPDM union O-Rings/carrier O-Ring
- Full ports allow maximum flow and minimum pressure drop or turbulence
- Ball valves are constructed of ASTM D1784 virgin UPVC resin
- Unique double union, single bayonet-style lock facilitates ease of repair and/or maintenance by allowing removal of the valve body from the pipeline
- In-line, one way flow style
- EPDM stem O-ring
| Softgoods Material | EPDM |
|---|---|
| Dimensions | 6.63 in H |
| Port Type | Full |
| End Style | FNPT |
| Ball Material | UPVC |
| Domestic/Import | Import |
| Inlet to Outlet Length | 8.13 in |
| Pressure Rating | 150 psi |
| Body Material | UPVC |
| Nominal Size | 2 in |
| Temperature Rating | 140 deg F |
| Series | T/S-603 |
| Actuator Type | T-Handle |
| Trim Material | UPVC Stem and PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 2" |
