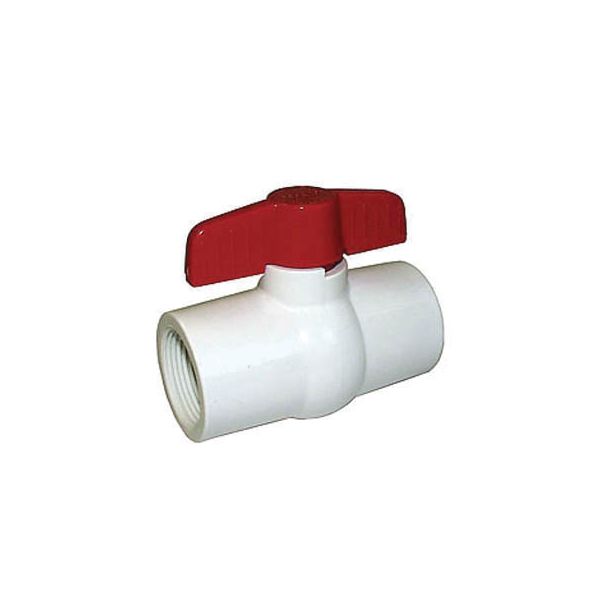

Legend 201-305
1"PVC FIPT BALL VALVE
SKU
885572
LEGEND Ball Valve, Compact, Series: T-601, 1 in Nominal, FNPT, 150 psi WOG, 140 deg F, Full Port, T-Handle Actuator, PVC Ball, 4.19 in Inlet to Outlet Length, PVC Body, PVC Stem and EPDM Seat Trim, 3-3/4 in H, Import
- 150 psi WOG at 73 deg F
- Fits SCH 40/STD or 80/XH pipe
| Dimensions | 3-3/4 in H |
|---|---|
| Port Type | Full |
| End Style | FNPT |
| Ball Material | PVC |
| Domestic/Import | Import |
| Inlet to Outlet Length | 4.19 in |
| Type | Compact |
| Pressure Rating | 150 psi WOG |
| Body Material | PVC |
| Nominal Size | 1 in |
| Temperature Rating | 140 deg F |
| Series | T-601 |
| Actuator Type | T-Handle |
| Trim Material | PVC Stem and EPDM Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 1" |
