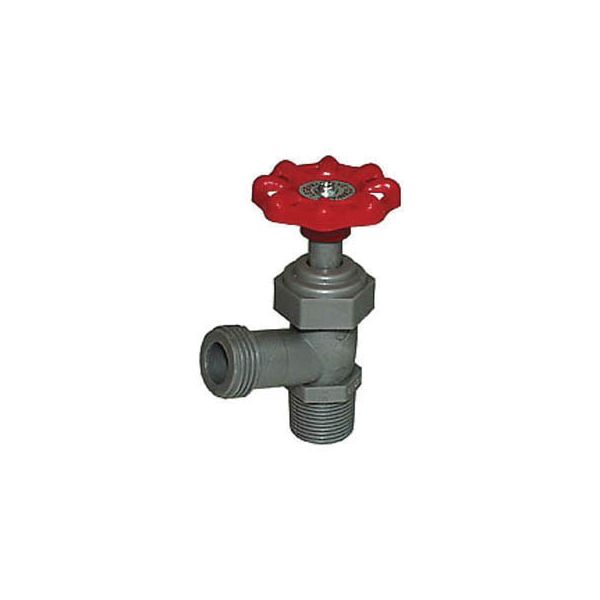

Legend 202-553
1/2"MIPT CELCON BOILER DRAIN
SKU
894410
LEGEND Boiler Drain Valve, Series: T-625, 1/2 in Nominal, MNPT End Style, 150 psi Pressure, -20 to 180 deg F, Media: Gas/Oil/Water, Handwheel Actuator, 2.68 in Inlet to Outlet Length, Celcon® Body, Celcon Trim, Polyamide Nylon 12 Seat Seal/EPDM O-Ring/EPDM Washer Softgoods, 4.26 in L Dimensions, Import
- Naturally lead free
- Zinc plated steel screw, polypropylene handwheel , CELCON stem, bonnet body, EPDM o-ring, washer, CELCON hard washer, polyamide nylon 12 seat seal
| Softgoods Material | Polyamide Nylon 12 Seat Seal/EPDM O-Ring/EPDM Washer |
|---|---|
| Dimensions | 4.26 in L |
| End Style | MNPT |
| Media | Gas/Oil/Water |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2.68 in |
| Pressure Rating | 150 psi |
| Body Material | Celcon® |
| Nominal Size | 1/2 in |
| Temperature Rating | -20 to 180 deg F |
| Series | T-625 |
| Actuator Type | Handwheel |
| Trim Material | Celcon |
| Brand | Legend |
| Type | Boiler Drains |
| Size | 1/2" |
