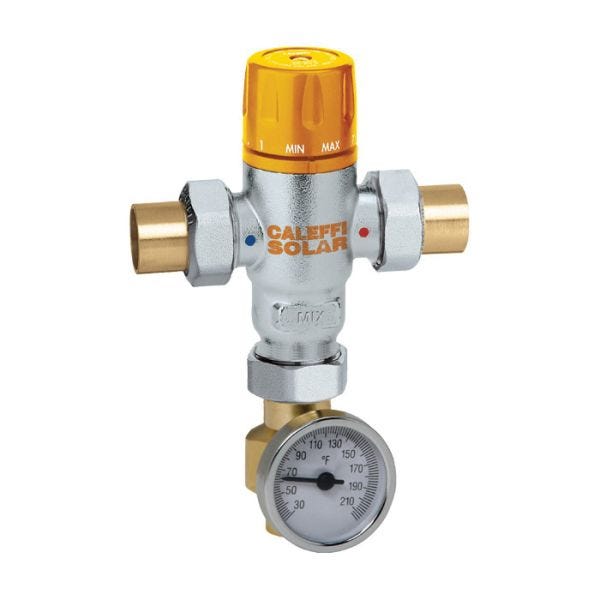

Caleffi 252158A
3/4" SWEAT WITH INLET CHK VALV
SKU
759675
Caleffi Thermostatic Mixing Valve, Adjustable 3-Way, Series: 2521, 3/4 in Nominal Size, C, 200 psi, 80 to 150 deg F, 1.3 gpm, Brass Body, EPDM Seal, 5-7/8 in H X 5 in W
- Max hot water inlet temperature: 210 deg F
- Reduction of lead in drinking water act: Compliant: 0.25% max weighted average lead content, certified by IAPMO R and T
- Tolerance: +/-3 deg F
- Max working pressure (dynamic): 75 psi (5 bar)
- Min working pressure (dynamic): 30 psi (2 bar)
| Pressure Rating | 200 psi |
|---|---|
| Dimensions | 5-7/8 in H X 5 in W |
| Series | 2521 |
| End Style | C |
| Body Material | Brass |
| Flow Rate | 1.3 gpm |
| Type | Adjustable 3-Way |
| Temperature Rating | 80 to 150 deg F |
| Nominal Size | 3/4 in |
| Softgoods Material | EPDM Seal |
| Brand | Caleffi North America |
