Sloan 3013627
ROYAL 310-1.28 FOOT PEDAL FV
SKU
852163

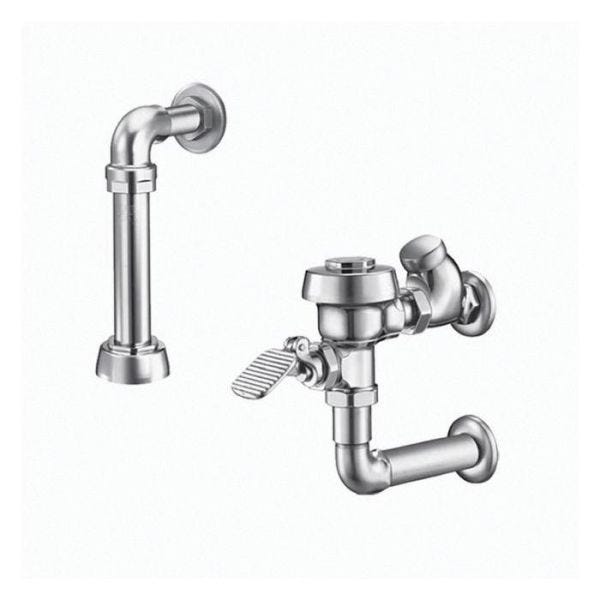

Sloan®, 3013627, Manual Exposed Flushometer, Single-Flush, Series: 310, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 10 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
- Varying flush volumes start as low as 1.6 gpf/6.0 lpf
- Water conservation is aided by non-hold-open foot pedal (not ADA compliant)
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed water closet foot pedal flushometer, for top spud bowls
| Flush Rate | 1.28 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Connection Location | Top Spud |
| Series | 310 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open Oscillating |
| Rough-In Size | 10 in |
| Fixture Type | Water Closet |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
