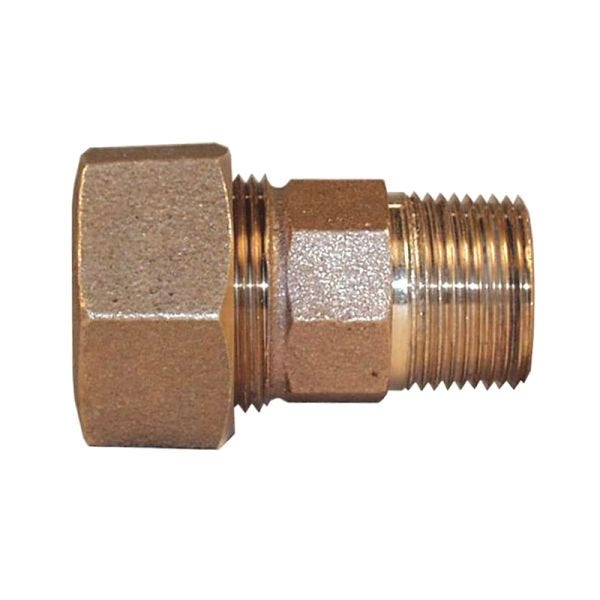

LEGEND 313-150NL
1" CTS COMP X 3/4" MIP T-4350
SKU
872882
LEGEND 313-150NL Coupling, Lead Free, Series: T-4350NL, Fitting/Connector Type: Coupling, 1 x 3/4 in Nominal, CTS Compression x MNPT, 2.89 in Length, 100 psi, 100 deg F, Bronze, Cast, Import
- Lead free design is suitable for all no lead potable water installations, in full compliance of the lead-free plumbing law
- Grip-ring compression end connections provide exceptional pullout resistance
- For underground water service installations only
- Certified lead-free and in compliance with NSF 372 lead content requirements
- Ring-compression end connections are designed to be installed onto the following tubing types: (1) types K or L copper water tubing compliant with ASTM B88,(2) Polyethylene plastic tubing compliant with ASTM D2737 SDR 9
| Fitting/Connector Type | Coupling |
|---|---|
| Material | Bronze |
| Method of Manufacture | Cast |
| Temperature Rating | 100 deg F |
| End Style | CTS Compression x MNPT |
| Domestic/Import | Import |
| Nominal Size | 1 x 3/4 in |
| Pressure Rating | 100 psi |
| Length | 2.89 in |
| Series | T-4350NL |
| Brand | Legend |
| Size | 1" |
| Type | Male Adapters |
