LEGEND 107-184NL
1/2" CXC NO LEAD SILLCOX
SKU
571663

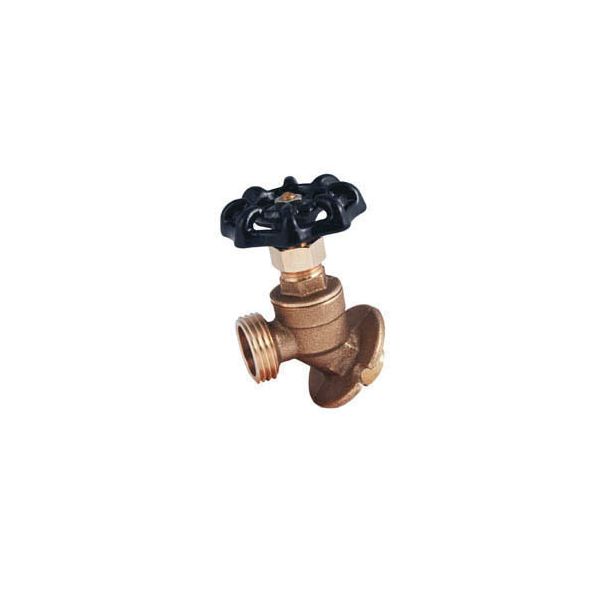

LEGEND Sillcock, Low Pressure, Series: S-541NL, 1/2 x 3/4 in Nominal, C x Male Garden Hose Thread End Style, 125 psi Pressure, Full Port, Media: Oil/Water, Brass Body, Cast Brass Trim, Handwheel Actuator, 3.75 in L Open x 3.47 in L Closed x 2.1 in W Dimensions, Import
- Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
- Full-pattern body, stem and handwheel construction is more durable than reduced-material examples
- Electric-induction furnace casting process optimizes molten brass temperature, resulting in superior cast body and bonnet components
- Equipped with a stem packing and packing nut design, which are superior to packless-bonnet stem seal designs
- Cast iron handle cadmium plated steel nut handle fastened, brass screw, packing nut, NBR (Buna-N) rubber stem packing and seat washer, stainless steel seat retaining screw
- Cast brass body
| Dimensions | 3.75 in L Open x 3.47 in L Closed x 2.1 in W |
|---|---|
| Port Type | Full |
| End Style | C x Male Garden Hose Thread |
| Media | Oil/Water |
| Domestic/Import | Import |
| Type | Low Pressure |
| Pressure Rating | 125 psi |
| Body Material | Brass |
| Nominal Size | 1/2 x 3/4 in |
| Series | S-541NL |
| Actuator Type | Handwheel |
| Trim Material | Cast Brass |
| Brand | Legend |
| Use | Sweat |
| Type | Sill Cocks |
| Size | 1/2" |
