Sloan 3324293
BASYS SENSOR FCT,SOLAR FCT
SKU
767089

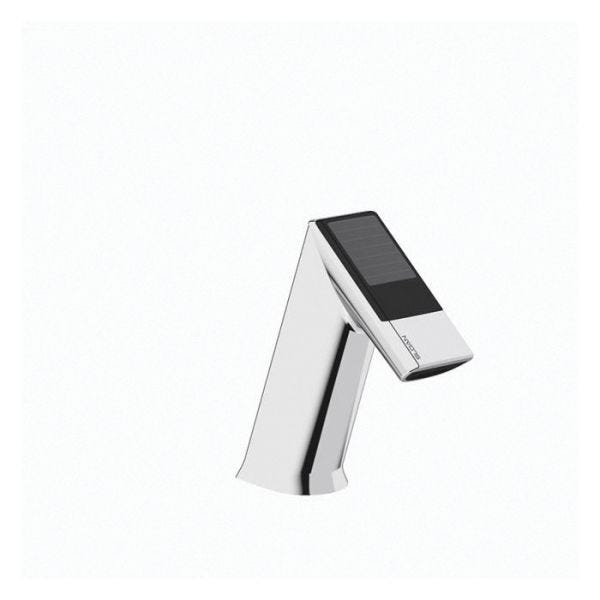

Sloan® BASYS® Hand Washing Faucet, Series: EFX-275, 0.5 gpm Flow Rate, Mid Spout, 6 in Spout Reach, 3-11/16 in Spout Height, 13 in Hose, 1 Faucet Holes, 3/8 in Connection, Compression Connection, Spray Pattern: Laminar, Function: Touchless, 1-1/2 in Maximum Deck Thickness, Deck Mounting, Bi-Stable Magnetic Solenoid Valve, 2-1/4 in W x 6-15/32 in D x 6-15/32 in H Dimensions, Polished Chrome, Import, Commercial Commercial/Residential
- 1-tool service
- All wetted components to be stainless steel, engineered thermoplastic, EPDM and copper or copper alloy
- Solenoid housed in removable carrier that includes supply strainer, serviceable from above deck
- Vandal resistant spray insert, key housed inside faucet body
- Gold plated electrical contacts
- Above deck individual diagnostic indicators for battery life, solenoid condition and power up mode
- Flexible, high pressure supply hoses
- All electronics sealed to IP-67
- Double infrared sensors with automatic setting feature
- Selectable Sloan® programmable line purge mode eliminates stagnant water
- Operates from 1 to 125 psi
- Adjustable run time from 0 to 3600 sec (factory set at 10 se maximum run time upon continuous detection)
- Faucet can be configured to add solar and LCD display
- Control circuit 6.75 VDC
- Battery life - 3 years under worst case conditions of 8000 cycles per month and high water pressure without power harvesting, power harvesting should extend service life of batteries
- Above deck control access
- Electronic metering
- 4 in trim plate
- Single centerset
- Solar energy harvesting
| Spray Pattern | Laminar |
|---|---|
| Maximum Deck Thickness | 1-1/2 in |
| Commercial/Residential | Commercial |
| Hose Size | 13 in |
| Valve/Cartridge Type | Bi-Stable Magnetic Solenoid Valve |
| Connection Size | 3/8 in |
| Series | EFX-275 |
| Number of Faucet Holes | 1 |
| Function | Touchless |
| Finish/Color | Polished Chrome |
| Dimensions | 2-1/4 in W x 6-15/32 in D x 6-15/32 in H |
| Spout Height | 3-11/16 in |
| Spout Type | Mid |
| Spout Reach | 6 in |
| Flow Rate | 0.5 gpm |
| Mounting Type | Deck |
| Connection Type | Compression |
| Domestic/Import | Import |
| Brand | Sloan |
| Finish | Chrome |
