Sloan 3772684
SLOAN 186-0.25-DBP-ESS UR FV
SKU
652888

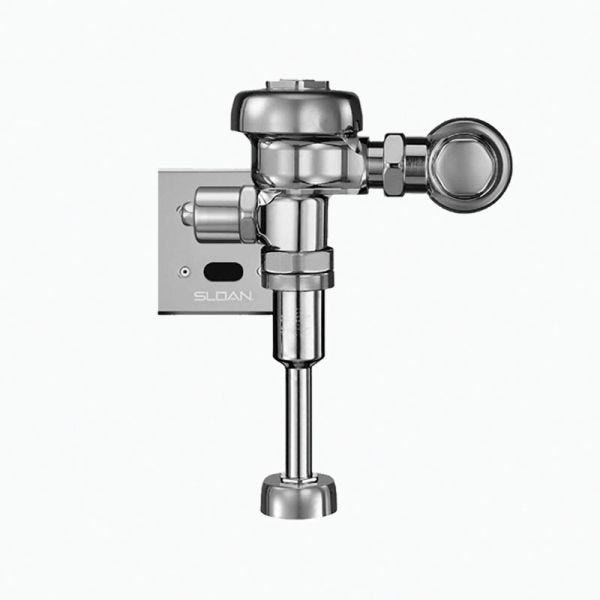

Sloan®, 3772684, Sensor Exposed Flushometer, Single-Flush, Series: 186 ESS, Optima® Collection, Urinal Fixture, Hardwired Power Source, 0.25 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 12 to 32 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
- Water conservation is aided by the ADA compliant, non-hold-open handle which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID® technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant Permex® synthetic rubber diaphragm with linear filtered by-pass and Vortex™ cleansing action
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- Exposed, sensor activated sloan® model urinal flushometer for 3/4 in top spud urinals
| Power Source | Hardwired |
|---|---|
| Flush Rate | 0.25 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 3/4 in IPS |
| Collection | Optima® |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 3/4 in |
| Sensor Range | 12 to 32 in |
| Connection Location | Top Spud |
| Series | 186 ESS |
| Material | Semi-Red Brass |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Urinal |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
