Sloan Valve Company 3918330
ROYAL 611 ESS WB FV
SKU
885640

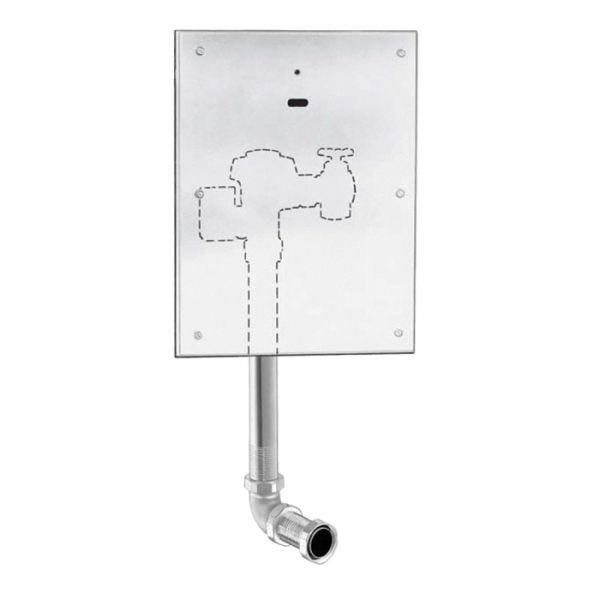

Sloan® Concealed Flushometer, Single-Flush Sensor, Series: 611 ESS, Royal® Collection, Water Closet Fixture, Hardwired Power Source, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 14-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Rear, 22 to 42 in Sensor, 15 to 80 psi Pressure, Non-Hold Open Handle, Semi-Red Brass, Polished Chrome, Domestic
- PERMEX® synthetic rubber diaphragm with dual filtered fixed bypass
- Optima® EL-1500-L self-adaptive infrared sensor with indicator light
- Courtesy Flush™ override button
- Non-hold open integral solenoid operator
- 13 x 17 in easy access wall box with stainless steel access panel
- Vandal resistant screws
- 1 in IPS wheel handle Bak-Chek® angle stop
- High back pressure vacuum breaker
- Elbow flush connection and coupling for 1 in NPT back inlet (for connection in the pipe chase - flush connection through the wall not provided by Sloan®)
- Sweat solder adapter
- High copper, low zinc brass casting for dezincification resistance ensures long life
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Flush accuracy controlled by CID™ technology
- Diaphragm, stop seat and vacuum breaker molded from PERMEX® rubber
- Compound for chloramine resistance
- Standard front accessible wall box (not included, order separately)
| Power Source | Hardwired |
|---|---|
| Flush Rate | 1.6 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Collection | Royal® |
| Valve Design | Diaphragm |
| Type | Single-Flush Sensor |
| Spud Coupling | 1-1/2 in |
| Sensor Range | 22 to 42 in |
| Connection Location | Rear |
| Series | 611 ESS |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open |
| Rough-In Size | 14-1/2 in |
| Fixture Type | Water Closet |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
