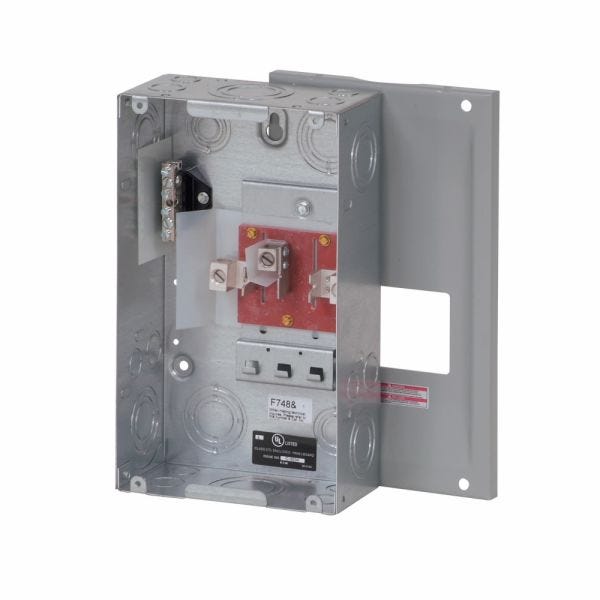

EATON 3BR3L100S
3 POLE 100A MAIN LUG BOX
SKU
792479
EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 VAC, 100 A, 3 Pole, 10 kA Interrupt, 3 Circuits, BR Breaker, 4-Wire Wiring Configuration, 3 Spaces, 14 to 1/0 AWG Wire, Surface Mount, NEMA 1, NEMA 9 Enclosure Box, 3.8 in L x 7.3 in W x 12.6 in H
- BR load centers have standard tin plated aluminum bus with a limited availability of copper bus
- Raintight boxes are manufactured from galvanized steel, then finished using an electrostatic powder coated, baked urethane paint process
- Flexible neutral design
- Tangential main knockout
- Single key hole mounting
- Factory pre-attached neutral bonding strap
- For use with type BR 1 in breakers
- Indoor enclosure
- Copper aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- No feed through lugs
| Wiring Configuration | 4-Wire |
|---|---|
| Number of Circuits | 3 |
| Enclosure Box Size | NEMA 9 |
| Type | 3-Phase Metallic |
| Enclosure Type | NEMA 1 |
| Number of Spaces | 3 |
| Wire Size | 14 to 1/0 AWG |
| Mounting Type | Surface |
| Number of Poles | 3 |
| Interrupt Rating | 10 kA |
| Amperage Rating | 100 A |
| Voltage Rating | 120/208Y/240 VAC |
| Breaker Type | BR |
| Dimensions | 3.8 in L x 7.3 in W x 12.6 in H |
| Brand | Eaton |
