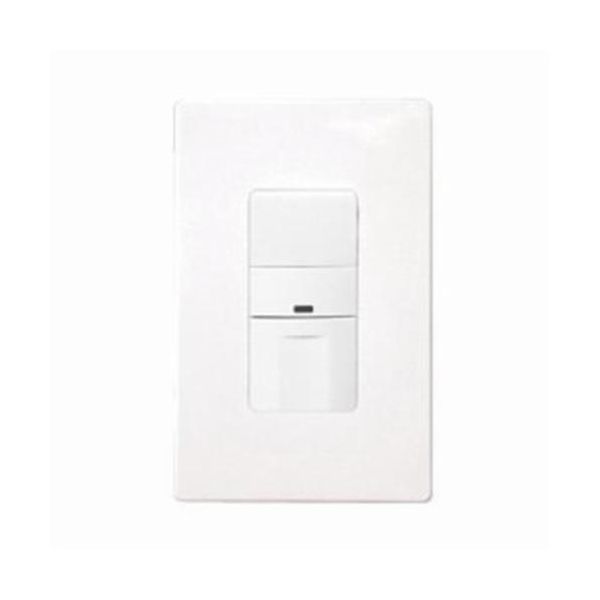

EATON OS306U-W
Occ SW,SP/3W,600W,UNV, WH'
SKU
735847
EATON Occupancy Sensor Switch, 1-Pole 3-Way Standard Universal, Series: OS306U, 120 VAC, 600 W Power, Occupancy/Passive Infrared Sensor, 450 sq-ft Coverage, 180 deg Viewing, 5 to 30 min Time Delay, Fluorescent/Halogen/Incandescent/LED Lamp, Wire Lead Connection, Surface Mounting, 32 to 104 deg F, Polycarbonate Resin, White, 1.4 in W x 1.8 in H Dimensions
- Convenient installation and test mode for setup
- Adjustable, built-in light level sensor
- Selectable time delay
- Manual Off pushbutton
- Color matched, reinforced lens is tamper-resistant
- Fits any decorator wallplate
- Occupancy switch provides automatic On/automatic Off
- Vacancy switch provides manual on/automatic Off
- OS306U turns On automatically when a person enters the room
- Material injection molded polycarbonate resin
- Pre-stripped wire lead connection
| Series | OS306U |
|---|---|
| Lamp Type | Fluorescent/Halogen/Incandescent/LED |
| Temperature Rating | 32 to 104 deg F |
| Type | 1-Pole 3-Way Standard Universal |
| Mounting Type | Surface |
| Connection Type | Wire Lead |
| Material | Polycarbonate Resin |
| Power Rating | 600 W |
| Viewing Angle | 180 deg |
| Sensor Type | Occupancy/Passive Infrared |
| Dimensions | 1.4 in W x 1.8 in H |
| Coverage | 450 sq-ft |
| Voltage Rating | 120 VAC |
| Color | White |
| Time Delay | 5 to 30 min |
| Brand | Eaton |
