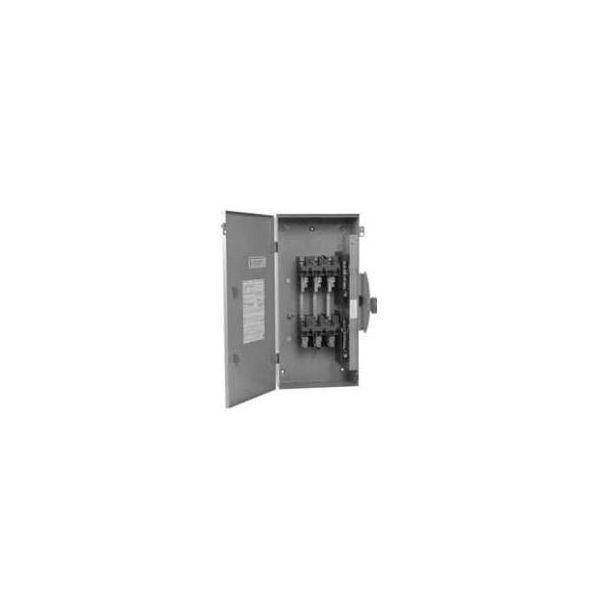

EATON DT223UGK
100A/2P 240V SWITCH
SKU
707211
EATON Safety Switch, Heavy Duty Non-Fusible, Series: K Series, 240 VAC/250 VDC, 100 A, 1 Phase, 2 Poles, 2 Wires, 100 kA Short Circuit, DPDT Contact Form, NEMA 1 Enclosure, 11.19 in L x 11.95 in W x 25.02 in H Dimensions, Steel, Painted
- Clearly visible, palm fitting red handle allows users to easily see the handle position (ON-OFF) from a distance and provides for easy operation
- Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
- Triple padlocking capability increases personnel safety
- Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
- Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
- 100% rated device means the switch may be used continuously up to its rated current
- Meets stringent UL 98 standards for safety, durability and reliability
| Material | Steel |
|---|---|
| Series | K Series |
| Dimensions | 11.19 in L x 11.95 in W x 25.02 in H |
| Number of Poles | 2 |
| Short Circuit Current Rating | 100 kA |
| Enclosure Type | NEMA 1 |
| Phase | 1 |
| Type | Heavy Duty Non-Fusible |
| Contact Form | DPDT |
| Voltage Rating | 240 VAC/250 VDC |
| Finish | Painted |
| Amperage Rating | 100 A |
| Number of Wires | 2 |
| Brand | Eaton |
