Highland 7000133646
INS BLOCK FORM TERM 25PK
SKU
701578

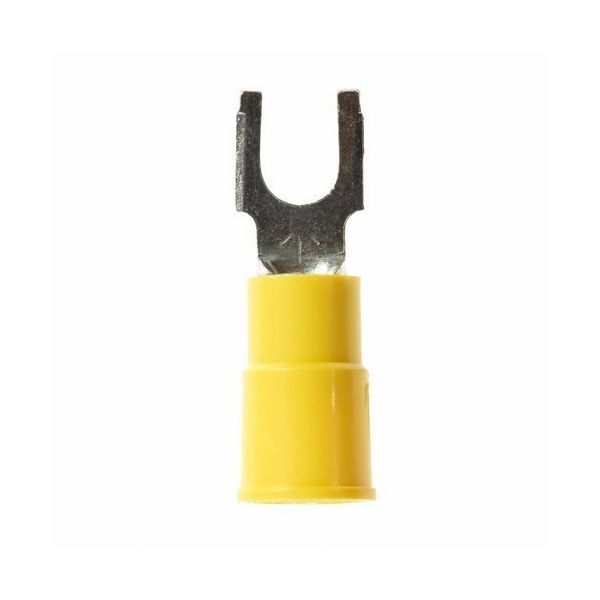

Highland™, 7000133646, Block Fork, Insulated, 12 to 10 AWG Conductor, #10 Stud, 1.03 in Length, Butted Seam Barrel, 0.135 in ID x 0.25 in L Barrel, Fork Tongue, 0.32 in W x 0.135 in THK Tongue, 600 to 1000 VAC, Specifications: 1/4 in Dia Max Insulation, 0.29 in Clearance, -40 to 221 deg F, Electrolytic Copper/Vinyl, Tin Plated, Yellow
- Yellow vinyl insulated, butted seam barrel ensures a secure fit and offers reliable performance
- Funnel designed, PVC sleeve offers easy insertion of wires
- Suitable for use in a terminal block
- Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion
- Abrasion and corrosion-resistant, flared, vinyl sleeve insulation ensures easy crimping
- Crimp termination
- Free hanging (in-line) mounting
| Temperature Rating | -40 to 221 deg F |
|---|---|
| Color | Yellow |
| Specifications | 1/4 in Dia Max Insulation, 0.29 in Clearance |
| Barrel Size | 0.135 in ID x 0.25 in L |
| Conductor Size | 12 to 10 AWG |
| Length | 1.03 in |
| Stud Size | #10 |
| Voltage Rating | 600 to 1000 VAC |
| Barrel Type | Butted Seam |
| Conductor Type | Stranded Copper |
| Tongue Size | 0.32 in W x 0.135 in THK |
| Tongue Type | Fork |
| Material | Electrolytic Copper/Vinyl |
| Type | Block Insulated |
| Finish | Tin Plated |
| Brand | 3M |
