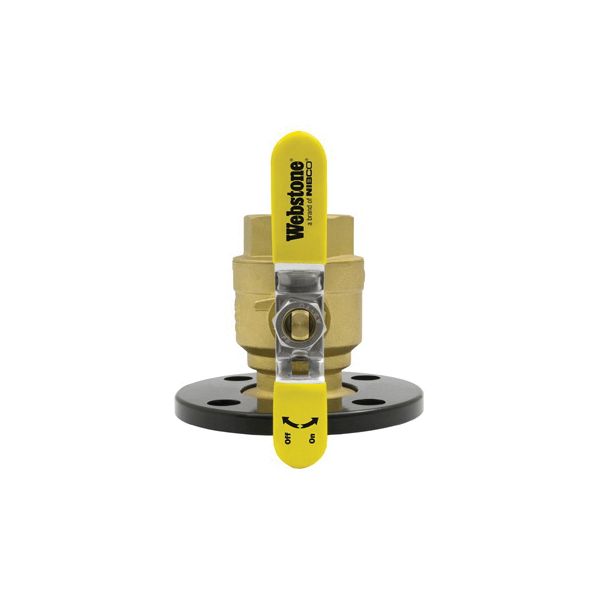

Webstone H-41407HV-RF400
2" IPS RND ISO W/ROT FLANGE
SKU
833909
Webstone The Isolator® Ball Valve, Series: 4140HV-RF, 2 in Nominal, IPS x Rotating Flanged, 600 psi, 100 deg F, Full Port, Media: Water/Glycol Mixture, Lever Handle Actuator, HCP Brass Ball, 4-3/8 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, PTFE, Brass, Import
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation
- Flange features a conical inlet to minimize turbulence
- For high efficiency variable speed pumps
- Saves 18 minutes
- Replaces 3 components
- Eliminates 2 leak paths
- This valve is actuated by a blowout-proof stem
- Brass stem and PTFE seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Adjustable Packing Gland
| Pressure Rating | 600 psi |
|---|---|
| Media | Water/Glycol Mixture |
| Series | 4140HV-RF |
| End Style | IPS x Rotating Flanged |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Brass |
| Ball Material | HCP Brass |
| Color | Brass |
| Port Type | Full |
| Actuator Type | Lever Handle |
| Temperature Rating | 100 deg F |
| Nominal Size | 2 in |
| Inlet to Outlet Length | 4-3/8 in |
| Domestic/Import | Import |
| Top to Inlet Center | 3-1/2 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
