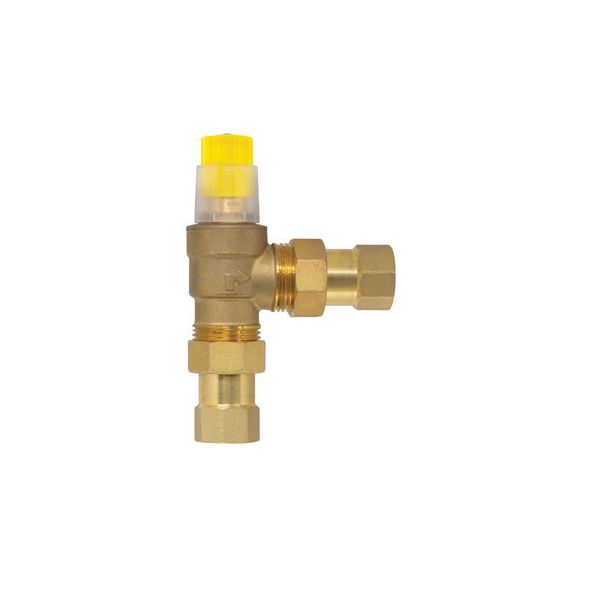

Webstone H-74544-A
1" FIP ANG DIFF PRESS BYPASS
SKU
892545
Webstone Differential Pressure Bypass Valve, Angled, Series: 7050A, 1 in Nominal, FNPT, 145 psi CWP, 230 deg F, 18 gpm Flow Rate, Media: Glycol Mixture/Oil/Water, Forged Brass Body, Brass/Stainless Steel Trim, PTFE/Rubber, 4.7 in L x 2.24 in W x 1.54 in H Dimensions, Import
- Eliminates noise in a zoned hydronic system with fixed-speed primary circulator pump
- Protects system components
- Maintains system efficiency
- Prevents over-pumping of zone
- Install between the boiler supply and return line or between zone leg in larger system
- Installs in any orientation
- Opening differential pressure setting adjustable from 1.5 to 9 psi
| Softgoods Material | PTFE/Rubber |
|---|---|
| Domestic/Import | Import |
| End Style | FNPT |
| Body Material | Forged Brass |
| Nominal Size | 1 in |
| Trim Material | Brass/Stainless Steel |
| Flow Rate | 18 gpm |
| Media | Glycol Mixture/Oil/Water |
| Dimensions | 4.7 in L x 2.24 in W x 1.54 in H |
| Type | Angled |
| Pressure Rating | 145 psi CWP |
| Temperature Rating | 230 deg F |
| Series | 7050A |
| Brand | Webstone |
