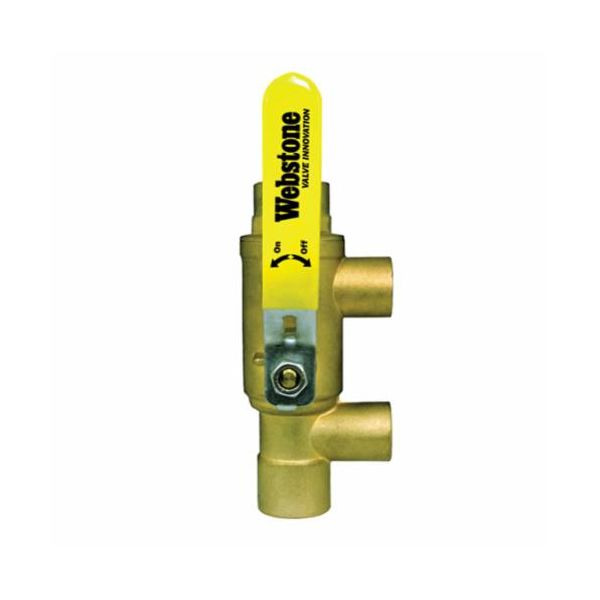

Webstone 58643
1X3/4 PURGE TEE SWT
SKU
618764
Webstone Purge Tee™, 58643, Ball Valve, Series: H-x864, 1 x 3/4 in Nominal, C Primary Loop x C Secondary Loop End Style, 600 psi CWP Pressure, 250 deg F, Full Port, Media: Glycol Mixture/Oil/Water, Reversible Handle Actuator, 5.81 in Inlet to Outlet Length, 2.38 in Top to Inlet Center, Forged Brass Body, Bass/PTFE Trim, PTFE Softgoods, Import
- PTFE seal/seat
- The only way to place a ball valve between two closely spaced tees precision crafting achieves hydraulic separation saves 36 m replaces five components eliminates four leak paths this valve is actuated by a blow-out proof stem adjustable packing gland
- Patented technology
- Replaces 5 components, eliminates 4 leak paths, saves 36 min of labor-however, correct spacing for hydraulic separation cannot be achieved using off-the-shelf components
- Enables power purging of secondary loops, improving efficiency at system start-up
- Ball valve with integral spring check saves labor, space, and leak paths
- Brass stem
- Pro-pal primary/secondary loop purge tee
- Provides precise spacing required for hydraulic separation
- Full port solid flow channel ensures highest possible flow rate
- Ideal for primary/secondary piping in mod-con boiler systems
- Full port forged brass ball valve
| Inlet to Outlet Length | 5.81 in |
|---|---|
| Softgoods Material | PTFE |
| Domestic/Import | Import |
| End Style | C Primary Loop x C Secondary Loop |
| Body Material | Forged Brass |
| Ball Material | HCP Brass |
| Nominal Size | 1 x 3/4 in |
| Actuator Type | Reversible Handle |
| Trim Material | Bass/PTFE |
| Top to Inlet Center | 2.38 in |
| Port Type | Full |
| Color | Brass |
| Media | Glycol Mixture/Oil/Water |
| Pressure Rating | 600 psi CWP |
| Temperature Rating | 250 deg F |
| Series | H-x864 |
| Brand | Webstone |
