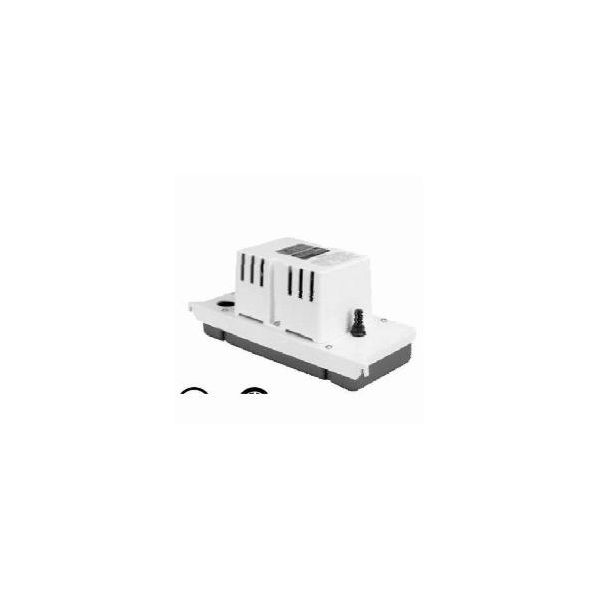

LittleGIANT 554200
VCCA-20ULS LOW PROFILE CON PMP
SKU
330315
Little Giant® Condensate Removal Pump, Automatic, Series: VCC-20ULS, 80 gph Flow Rate, 20 ft Shutoff Head, 93 W Power, 1/30 hp Electrical Rating, 8.7 psi Maximum, Glass-Filled Polypropylene Impeller, 3/10 gal Reservoir, Power Cord, Wall Mounting, 120 deg F, ABS, Import
- 3/8 in OD barbed discharge size
- 115 V, 60 Hz
- 80 gph at 1 ft head, 70 gph at 5 ft head, 45 gph at 10 ft head
- Housing, cover and volute ABS construction, impeller glass filled polypropylene construction, stainless steel motor shaft
- Low profile compact size, vertical type pump unit, leak-proof, rustproof, ABS tank, stainless steel motor shaft, 3/8 in OD barbed discharge adapter, 6 ft power cord, thermal overload protected
- The VCC is a low profile compact size for applications with limited space
| Cord Type | Power |
|---|---|
| Reservoir Capacity | 3/10 gal |
| Type | Automatic |
| Power Rating | 93 W |
| Maximum Pressure | 8.7 psi |
| Flow Rate | 80 gph |
| Shutoff Head | 20 ft |
| Series | VCC-20ULS |
| Mounting Type | Wall |
| Domestic/Import | Import |
| Temperature Rating | 120 deg F |
| Impeller Type | Glass-Filled Polypropylene |
| Electrical Ratings | 1/30 hp |
| Material | ABS |
| Brand | Little Giant |
