Franklin Electric 554401
VCMA-15UL LG CP 15' W/O SFTY
SKU
256238

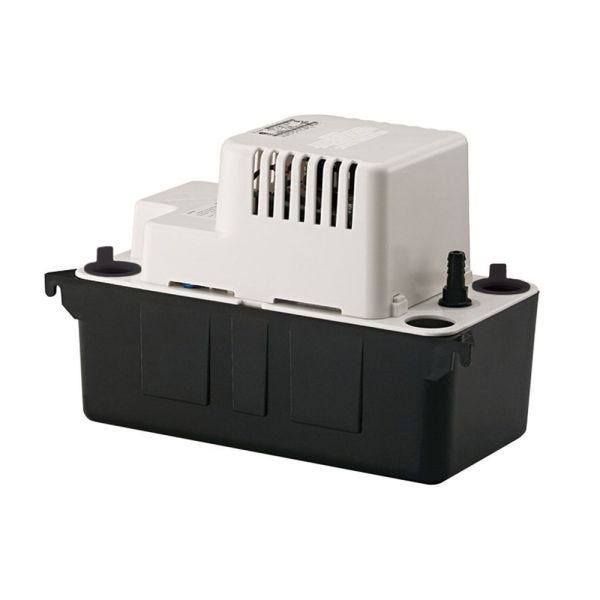

Little Giant® Condensate Removal Pump, Automatic, Series: VCMA-15, 65 gph Flow Rate, 3/8 in OD Barbed Outlet, 15 ft Shutoff Head, 60 W Power, 1 A 115 VAC 60 Hz 1/50 hp Electrical Rating, 6.5 psi Maximum, Glass-Filled Polypropylene Impeller, 1/2 gal Reservoir, Wall Mounting, 140 deg F, ABS, 11 in L x 5 in W x7 in H Dimensions
- Vertical centrifugal pump design
- Automatic start and stop operation
- For models with safety overflow switch - dual function NO-NC operation (set to NO from factory for equipment shut down connection)
- Models equipped with safety overflow switch include two 5 in switch lead wires
- 3/8 in OD barbed discharge adapter with built-in check valve
- Thermally protected, fan cooled motor
- Three 1-1/8 in Dia inlet openings (two fitted with removable cap plug)
- Built-in wall mount tabs on tank
- Removable pump float locking tab for safety during transportation (remove at time of installation)
- 6 ft, 3-conductor cable with grounded 3-prong plug
- ABS motor cover, volute, tank, glass filled polypropylene impeller, acetal check valve
| Dimensions | 11 in L x 5 in W x7 in H |
|---|---|
| Reservoir Capacity | 1/2 gal |
| Type | Automatic |
| Power Rating | 60 W |
| Maximum Pressure | 6.5 psi |
| Flow Rate | 65 gph |
| Shutoff Head | 15 ft |
| Series | VCMA-15 |
| Mounting Type | Wall |
| Temperature Rating | 140 deg F |
| Impeller Type | Glass-Filled Polypropylene |
| Electrical Ratings | 1 A 115 VAC 60 Hz 1/50 hp |
| Material | ABS |
| Outlet Size | 3/8 in OD Barbed |
| Brand | Little Giant |
