Franklin Electric 554431
VCMA-20ULT COND.PUMP W/20FT TB
SKU
302311

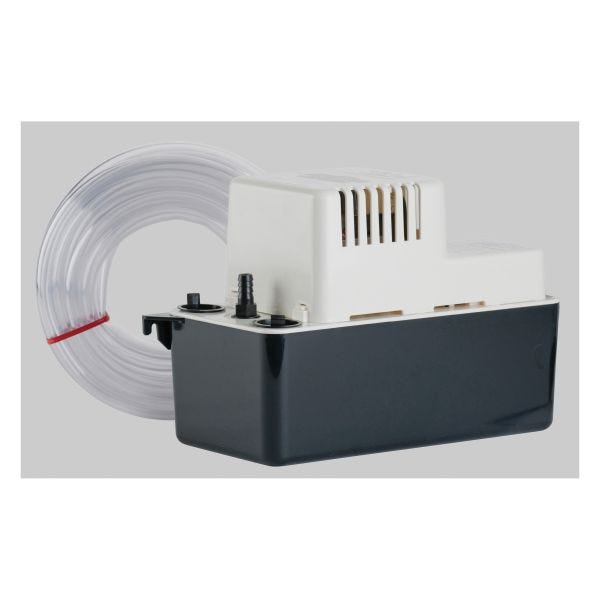

Little Giant® Condensate Removal Pump, 80 gph Flow Rate, 3/8 in Barb Outlet, 20 ft Shutoff Head, 93 W Power, 115 V 60 Hz 1 A Electrical Rating, 8.7 psi Maximum, Glass-Filled Thermoplastic Impeller, 1/2 gal Reservoir, 6 ft Power Cord, Solid Polymer Float, Wall Mounting, 140 deg F, ABS, 10.3 in L x 5 in W x 7 in H Dimensions, Import
- ABS tank, motor cover and volute
- Stainless steel shaft
- Snap-action switch
- Removable 3/8 in barbed check valve
- Three inlet drain holes
- Thermal overload protection
- Safety switch
- 80 gph at 1 ft H
| Dimensions | 10.3 in L x 5 in W x 7 in H |
|---|---|
| Cord Type | 6 ft Power |
| Reservoir Capacity | 1/2 gal |
| Power Rating | 93 W |
| Maximum Pressure | 8.7 psi |
| Float Material | Solid Polymer |
| Flow Rate | 80 gph |
| Shutoff Head | 20 ft |
| Mounting Type | Wall |
| Domestic/Import | Import |
| Temperature Rating | 140 deg F |
| Impeller Type | Glass-Filled Thermoplastic |
| Electrical Ratings | 115 V 60 Hz 1 A |
| Material | ABS |
| Outlet Size | 3/8 in Barb |
| Brand | Little Giant |
