LittleGIANT 509204
9SN-CIA-RF 115V 20FT
SKU
551052

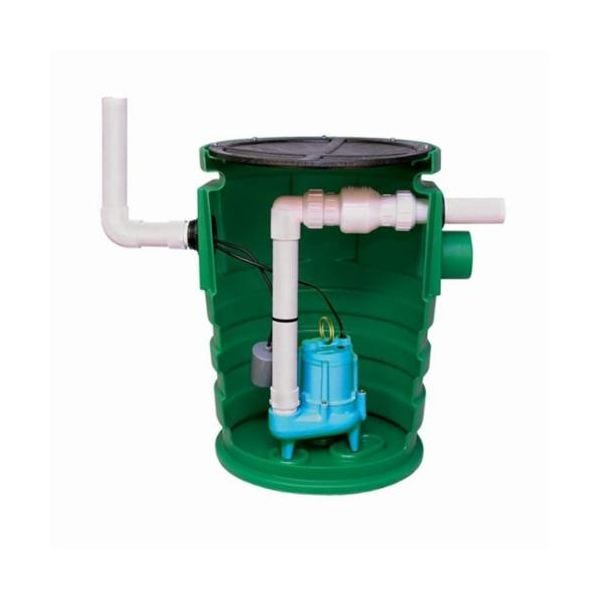

Little Giant® Sewage Pump, Automatic, Series: 9SN, 30 gpm, 2 in Outlet, 20 ft Maximum Head, 4/10 hp, 115 VAC, 8.5 A, 60 Hz Frequency, 1 ph ph, 8.7 psi Maximum, SJTW Cord, Vortex Impeller, 140 deg F, Ball/Sintered Sleeve Bearing, Cast Iron, 11.64 in L x 6.8 in W x 11.4 in H Dimensions
- Permanent split capacitor (PSC)
- Energy saving low amp draw
- Designed for continuous duty
- 2 in FNPT and 3 in FNPT discharge models
- Handles solids up to 2 in dia
- Multiple switch options for automatic operation
- 140 deg F liquid temperature
- Model 9SN-CIA-RF
- 30 gpm at 15 ft head
| Frequency Rating | 60 Hz |
|---|---|
| Flow Rate | 30 gpm |
| Type | Automatic |
| Maximum Pressure | 8.7 psi |
| Cord Type | SJTW |
| Temperature Rating | 140 deg F |
| Amperage Rating | 8.5 A |
| Outlet Size | 2 in |
| Phase | 1 ph |
| Bearing Type | Ball/Sintered Sleeve |
| Maximum Head | 20 ft |
| Dimensions | 11.64 in L x 6.8 in W x 11.4 in H |
| Impeller Type | Vortex |
| Series | 9SN |
| Material | Cast Iron |
| Horsepower | 4/10 hp |
| Brand | Little Giant |
