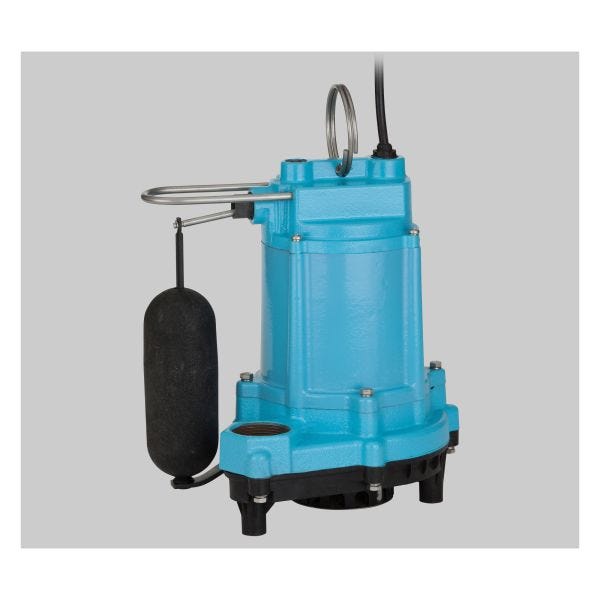

Franklin Electric 506807
6EC-CIA-SFS 115V 60HZ 10FT COR
SKU
512832
Little Giant® Submersible Sump Pump, Series: 6EC, 53 gpm, 1-1/2 in FNPT Outlet, 28 ft Maximum Head, 20 ft Maximum Suction Lift, 1/3 hp, 115 VAC, 5 A, 60 Hz Frequency, 1 ph ph, 12.1 psi Maximum, SJTW 10 ft Cord, Nylon Impeller, 140 deg F, Upper and Lower Ball Bearing, 10.66 in L x 8.48 in W x 11.28 in H Dimensions, Import
- Heavy duty cast iron construction
- Permanent split capacitor motor with thermal overload protection
- Designed for continuous duty
- Energy-saving low amp draw
- Cooler running motor
- Handles up to 1/2 in solids
- Polypropylene base
- Integral snap-action float switch operation
- 53 gpm at 5 ft H
| Cord Type | SJTW 10 ft |
|---|---|
| Frequency Rating | 60 Hz |
| Temperature Rating | 140 deg F |
| Maximum Suction Lift | 20 ft |
| Impeller Type | Nylon |
| Bearing Type | Upper and Lower Ball |
| Domestic/Import | Import |
| Series | 6EC |
| Outlet Size | 1-1/2 in FNPT |
| Voltage Rating | 115 VAC |
| Flow Rate | 53 gpm |
| Maximum Head | 28 ft |
| Dimensions | 10.66 in L x 8.48 in W x 11.28 in H |
| Phase | 1 ph |
| Amperage Rating | 5 A |
| Horsepower | 1/3 hp |
| Maximum Pressure | 12.1 psi |
| Brand | Little Giant |
