Franklin Electric 554455
*VCMA-20ULS 230V, 6'CORD
SKU
642512

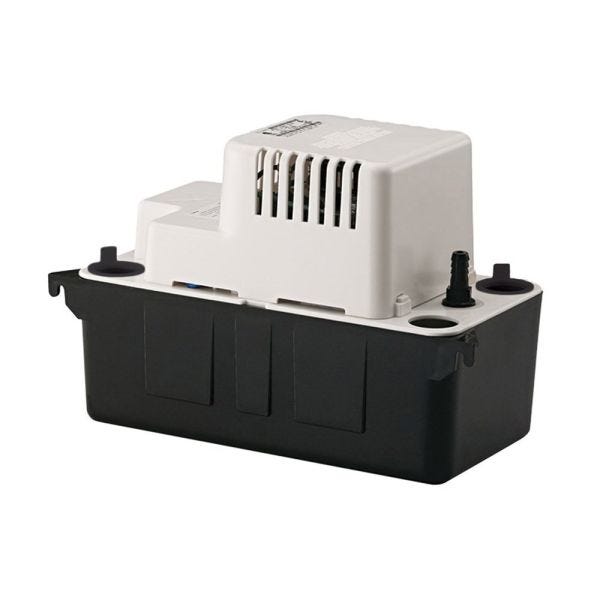

Little Giant® Condensate Removal Pump, Automatic, Series: VCMA-20, 80 gph Flow Rate, 1-1/8 in Inlet, 3/8 in OD Barbed Outlet, 17 ft Shutoff Head, 75 W Power, 0.5 A 230 VAC 50/60 Hz 1/30 hp Electrical Rating, 7.4 psi Maximum, Glass-Filled Polypropylene Impeller, 1/2 gal Reservoir, Wall Mounting, 140 deg F, ABS, 11 in L x 5 in W x7 in H Dimensions
- Vertical centrifugal pump design
- Automatic start and stop operation
- For models with safety overflow switch - dual function NO-NC operation (set to NO from factory for equipment shut down connection)
- Models equipped with safety overflow switch include two 5 in switch lead wires
- 3/8 in OD barbed discharge adapter with built-in check valve
- Thermally protected, fan cooled motor
- Three 1-1/8 in Dia inlet openings (two fitted with removable cap plug)
- Built-in wall mount tabs on tank
- Removable pump float locking tab for safety during transportation (remove at time of installation)
- 6 ft, 3-conductor cable with grounded 3-prong plug
- ABS volute, tank, glass filled polypropylene impeller, acetal check valve
| Reservoir Capacity | 1/2 gal |
|---|---|
| Material | ABS |
| Series | VCMA-20 |
| Power Rating | 75 W |
| Outlet Size | 3/8 in OD Barbed |
| Shutoff Head | 17 ft |
| Impeller Type | Glass-Filled Polypropylene |
| Flow Rate | 80 gph |
| Type | Automatic |
| Maximum Pressure | 7.4 psi |
| Temperature Rating | 140 deg F |
| Electrical Ratings | 0.5 A 230 VAC 50/60 Hz 1/30 hp |
| Dimensions | 11 in L x 5 in W x7 in H |
| Mounting Type | Wall |
| Inlet Size | 1-1/8 in |
| Brand | Little Giant |
