ASC Engineered Solutions 0390171098

7045 2-1/2X1-1/4 FIP CLAMP-T
SKU
218306
The product cannot be delivered by Truck Shipping

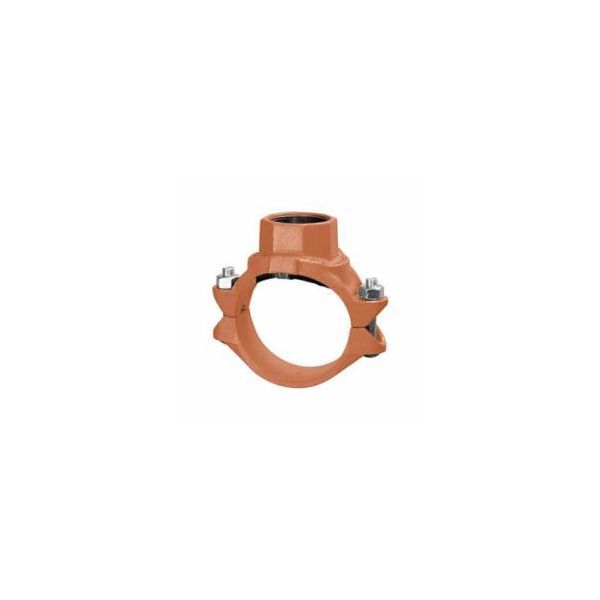

Gruvlok® Clamp-T Branch Outlet, Series: FIG 7045, 2-1/2 x 1-1/4 in Nominal, FNPT, SCH 40/STD, 500 psi, -40 to 230 deg F, 1/2 in Bolt, Steel Bolt, Ductile Iron Clamp, Grade E EPDM Gasket, 6-1/8 in W x 6-3/8 in THK, Orange, Rust Inhibiting Painted, Domestic

  • Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
  • 2 in ID x 2-1/8 in OD
  • 2.875 x 1.66 in OD
  • Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services
  • Not for use in petroleum application
  • Grade E EPDM green gasket
More Information
Pressure Rating 500 psi
Bolt Size 1/2 in
Gasket Material Grade E EPDM
Finish Rust Inhibiting Painted
Schedule Rating SCH 40/STD
Dimensions 6-1/8 in W x 6-3/8 in THK
Bolt Material Steel
Color Orange
Nominal Size 2-1/2 x 1-1/4 in
Series FIG 7045
Temperature Rating -40 to 230 deg F
Domestic/Import Domestic
Connection Type FNPT
Clamp Material Ductile Iron
Brand Gruvlok
