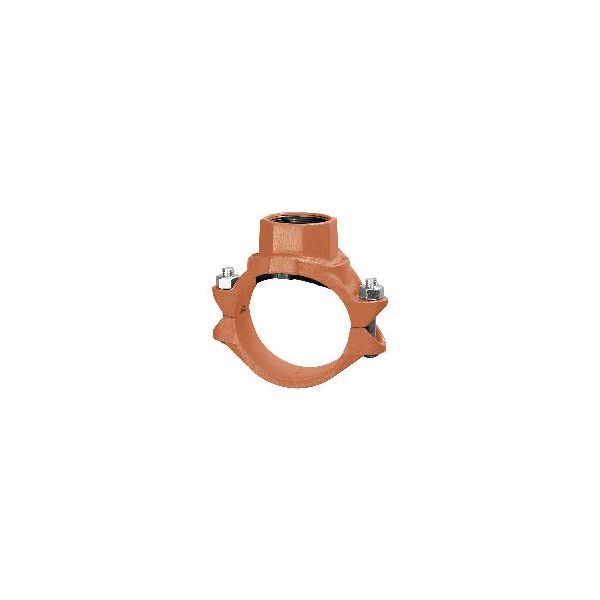

Gruvlok 0390171122
7045 3X1/2 FIP CLAMP-T(U-BOLT)
SKU
254111
Gruvlok® Clamp-T Branch Outlet, Series: FIG 7045, 3 x 1/2 in Nominal, FNPT, SCH 40/STD, 500 psi, -40 to 230 deg F, 1/2 in Bolt, Steel Bolt, Ductile Iron Clamp, Grade E EPDM Gasket, 7 in W x 3-3/4 in THK, Orange, Rust Inhibiting Painted, Domestic
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
- 1-1/2 in ID x 1-5/8 in OD
- 3.5 x 0.84 in OD
- Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services
- Not for use in petroleum application
- Grade E EPDM green gasket
| Bolt Size | 1/2 in |
|---|---|
| Domestic/Import | Domestic |
| Gasket Material | Grade E EPDM |
| Temperature Rating | -40 to 230 deg F |
| Color | Orange |
| Schedule Rating | SCH 40/STD |
| Dimensions | 7 in W x 3-3/4 in THK |
| Clamp Material | Ductile Iron |
| Bolt Material | Steel |
| Finish | Rust Inhibiting Painted |
| Connection Type | FNPT |
| Pressure Rating | 500 psi |
| Nominal Size | 3 x 1/2 in |
| Series | FIG 7045 |
| Brand | Gruvlok |
