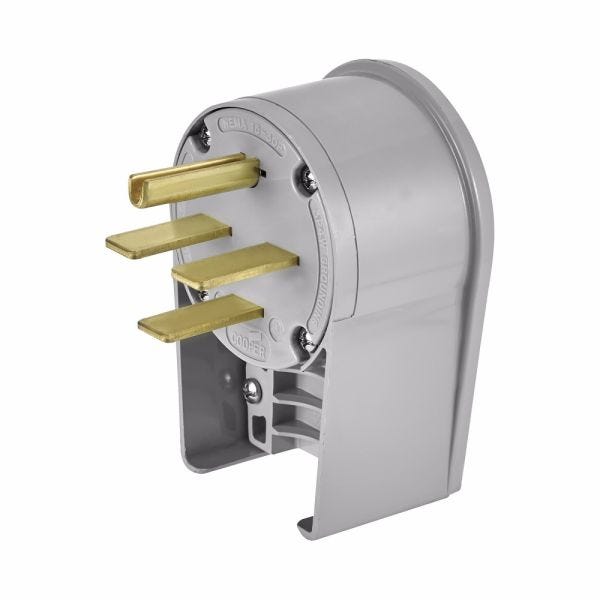

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Plug, Angled, 250 VAC, 30 A, 3 Pole, 4 Wires, NEMA 15-30P NEMA Rating, Commercial/Industrial/Standard Grade, 0.56 to 1.31 in Diameter Cord, -40 to 75 deg C, Threaded Terminal, Thermoplastic, Gray, 4.3 in H x 3 in W Dimensions
- Rugged high-strength construction
- High-strength thermoplastic
- Neoprene gasket seals around cord for added terminal protection from external elements
- Unique internal clamp design secures cord during assembly, reducing installation time
- 18 to 10 AWG wire
| Grade | Commercial/Industrial/Standard |
|---|---|
| Number of Poles | 3 |
| Color | Gray |
| Type | Angled |
| Dimensions | 4.3 in H x 3 in W |
| Amperage Rating | 30 A |
| Number of Wires | 4 |
| Cord Diameter | 0.56 to 1.31 in |
| Voltage Rating | 250 VAC |
| Temperature Rating | -40 to 75 deg C |
| Material | Thermoplastic |
| Terminal Type | Threaded |
| NEMA Rating | NEMA 15-30P |
| Brand | Cooper Wiring Devices |
| Type | Plugs |
